Individual hose record

4484097 Hose Repair Specifications

Excavator · Hitachi · ZX210W · Attachments

Finished length3,100 mm

Locate this hose

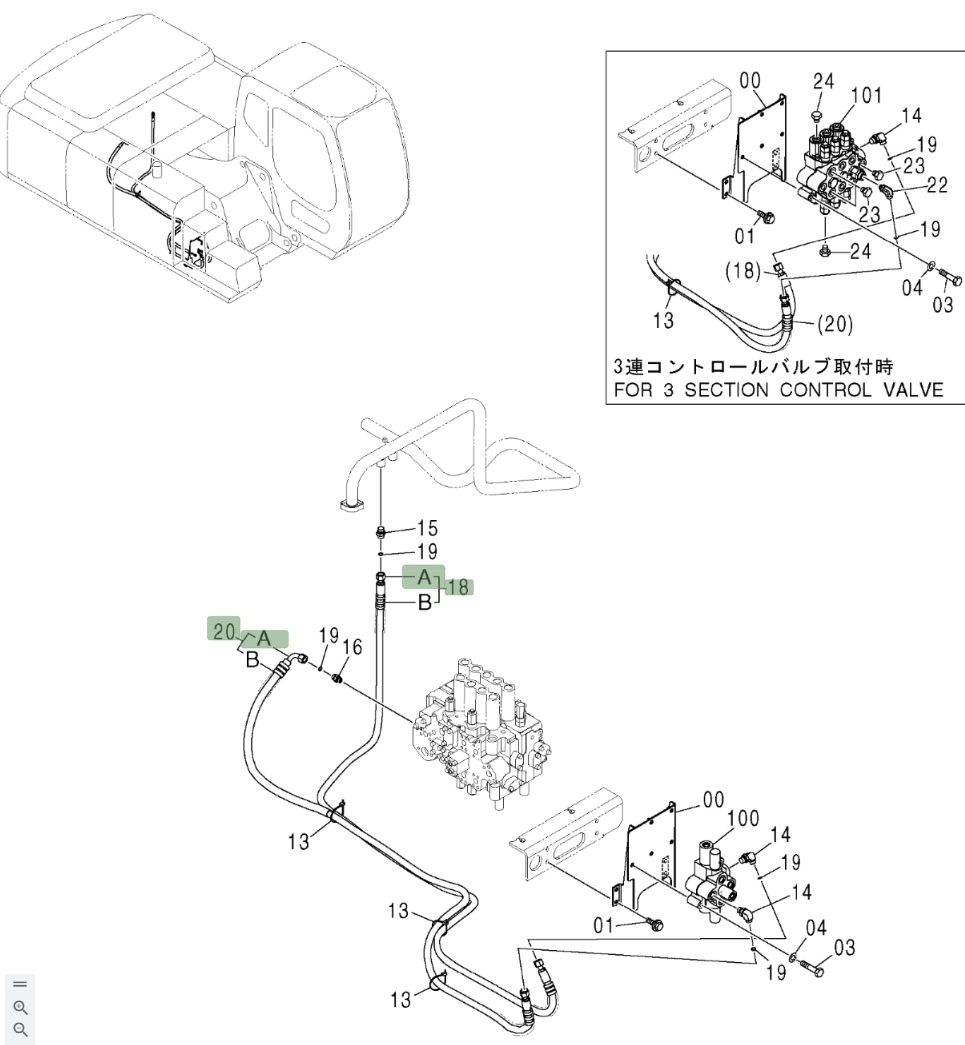

Installation diagram — Pipe No. 18A

Locate Pipe No. 18A in the diagram, then confirm part number 4484097 before removing the hose.

Hitachi ZX210W installation diagram showing hydraulic hose 4484097 at Pipe No. 18A — **Hitachi ZX210W**Part 4484097 · Pipe No. 18AOpen full-size diagram

Repair specifications

Part number: 4484097
Diagram pipe number: 18A
Installation route: 控制阀(推土铲)~回油铁管(分配阀)
Hose specification: DN12;1SN-8;7MPa
Finished length: 3,100 mm
Working pressure: 7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
