Individual hose record

KHJ18110 Hose Repair Specifications

Excavator · Case · CX210C LR · Attachments – Breaker

Finished length4,000 mm

Locate this hose

Installation diagram — Pipe No. 84

Locate Pipe No. 84 in the diagram, then confirm part number KHJ18110 before removing the hose.

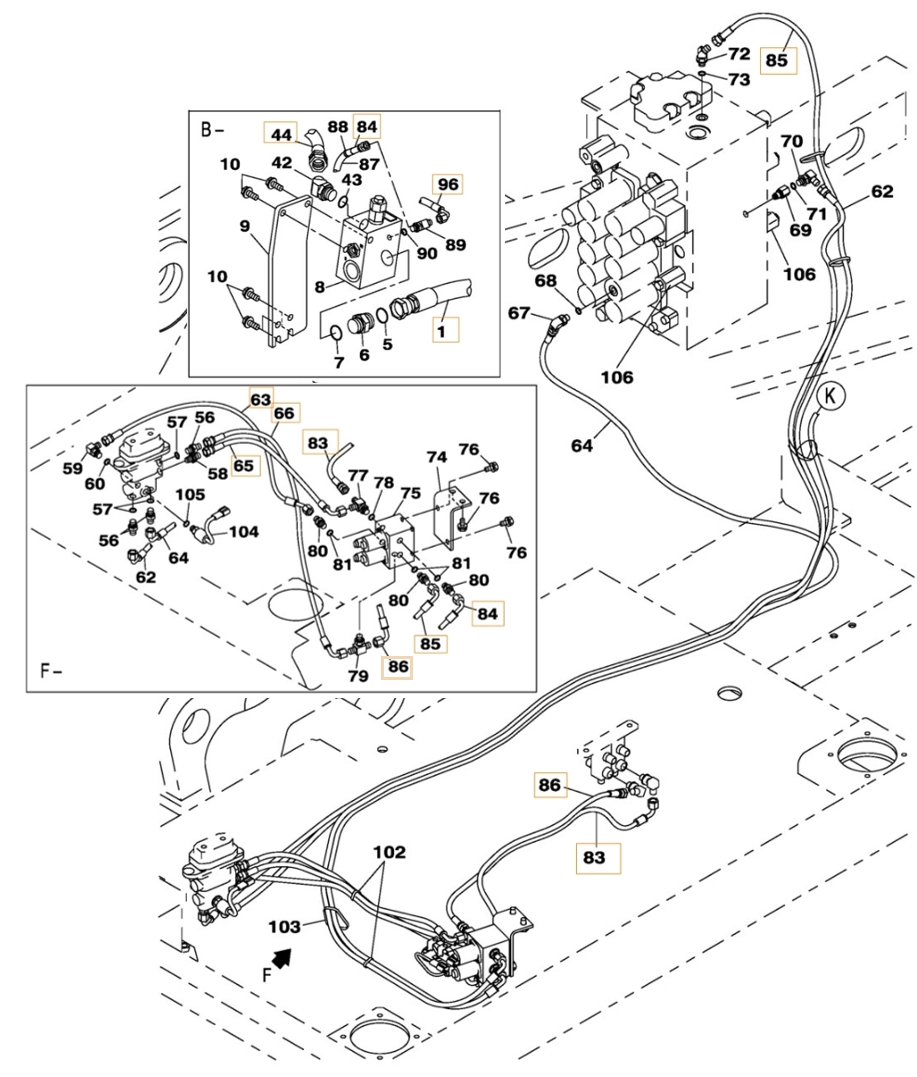

Case CX210C LR installation diagram showing hydraulic hose KHJ18110 at Pipe No. 84 — **Case CX210C LR**Part KHJ18110 · Pipe No. 84Open full-size diagram

Repair specifications

Part number: KHJ18110
Diagram pipe number: 84
Installation route: 电磁阀(破碎器)~左过渡阀块(破碎器)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 4,000 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
