Individual hose record

DS2093102 Hose Repair Specifications

Excavator · Doosan · DX140W · Attachments

Finished length430 mm

Locate this hose

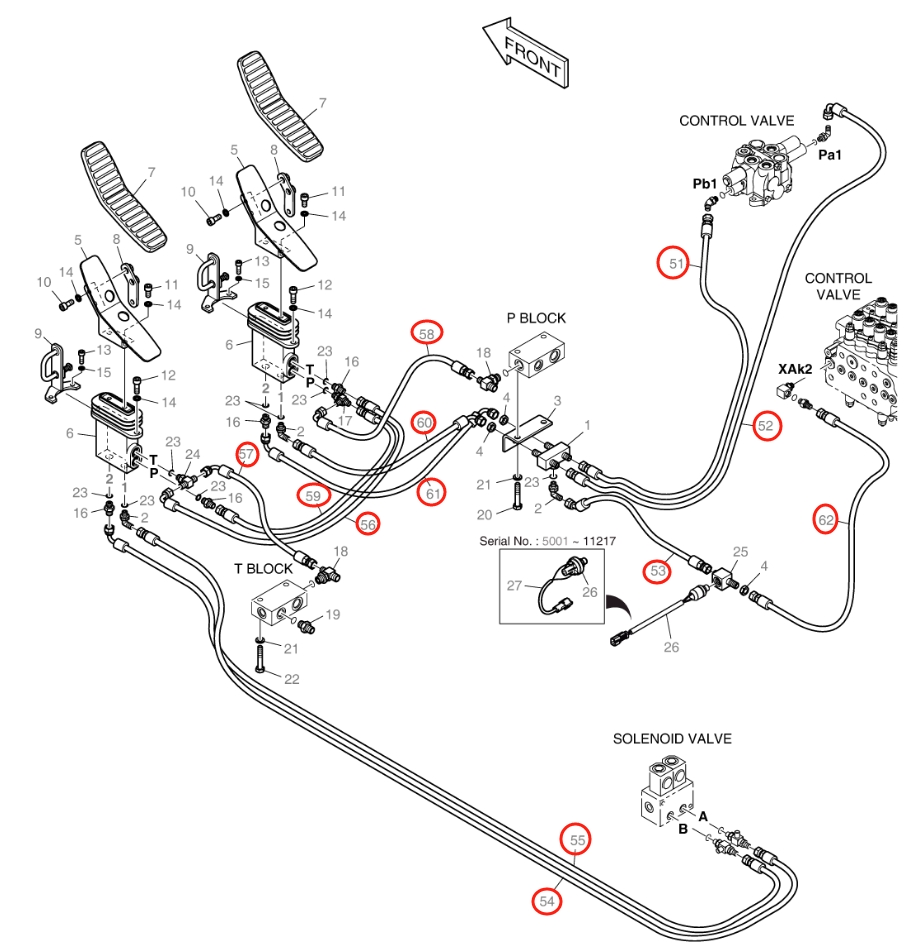

Installation diagram — Pipe No. 56

Locate Pipe No. 56 in the diagram, then confirm part number DS2093102 before removing the hose.

Doosan DX140W installation diagram showing hydraulic hose DS2093102 at Pipe No. 56 — **Doosan DX140W**Part DS2093102 · Pipe No. 56Open full-size diagram

Repair specifications

Part number: DS2093102
Diagram pipe number: 56
Installation route: 分节大臂踏板T口~附加装置踏板T口
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 430 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 51

DS2093102

Installation route: 附加装置踏板T口~破碎器踏板T口

Length: 430 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 20

DS2093013

Installation route: 电磁阀(支腿架)T口~电磁阀(支腿架)T口

Length: 460 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Hose record

DS2093013

Installation route: 电磁阀(支腿架)T口~电磁阀(推土铲)T口

Length: 460 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 21

DS2092054

Installation route: 回转接头15口~电磁阀(支腿架)T口

Length: 1,090 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 59

DS2094004

Installation route: 分节大臂踏板P口~附加装置踏板P口

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

View full repair specifications

Hose record

DS2093251

Installation route: 附加装置踏板T口~回油阀

Length: 280 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Hose record

DS2093102

Installation route: 附加装置踏板T口~破碎器踏板T口

Length: 430 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications

Diagram Pipe No. 53

DS2093102

Installation route: 破碎器踏板T口~分节大臂踏板T口

Length: 430 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

View full repair specifications
