Individual hose record

4643029 Hose Repair Specifications

Excavator · Hitachi · ZX160LC-3 · Control Valve

Finished length550 mm

Locate this hose

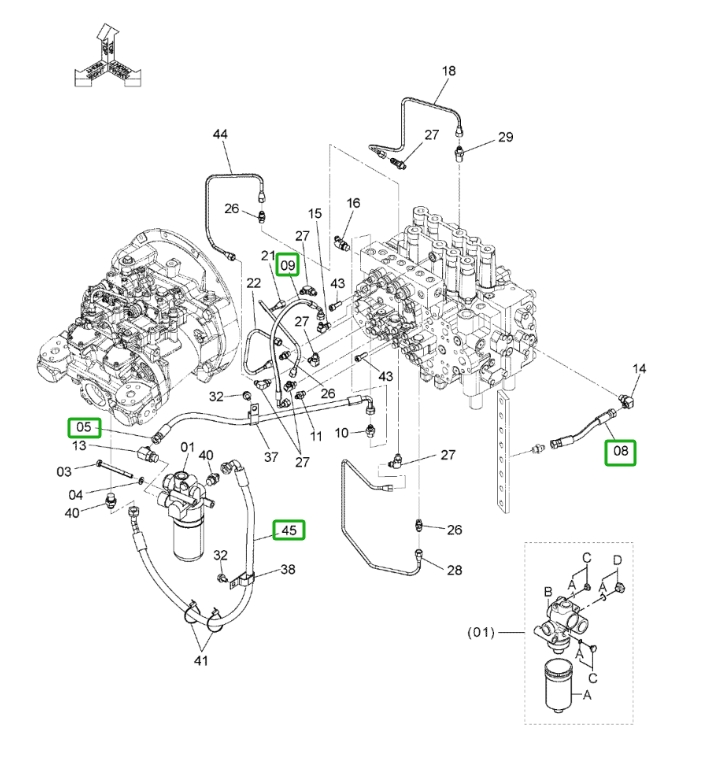

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 4643029 before removing the hose.

Hitachi ZX160LC-3 installation diagram showing hydraulic hose 4643029 at Pipe No. 9 — Hitachi ZX160LC-3Part 4643029 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 4643029
Diagram pipe number: 9
Installation route: 分配阀上~分配阀右
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 550 mm
Working pressure: 22.5 MPa
Left fitting: 45°美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 33

4618606

Installation route: 分配阀右~电磁阀

Length: 520 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 10

4670335

Installation route: 分配阀上~回转马达

Length: 350 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 35

4480078

Installation route: 分配阀左~分配阀左

Length: 300 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 1

4471645

Installation route: 分配阀左~回转马达

Length: 1,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 47

4630946

Installation route: 分配阀下~电磁阀

Length: 850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 8

4632041

Installation route: 分配阀右~电磁阀

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°美制内螺纹74°内锥
Right fitting: 45°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 45

4630947

Installation route: 分配阀左~电磁阀

Length: 850 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications
