Diagram Pipe No. 32A
4640837
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 520 mm
- Specification
- DN12;1SN-8;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
Individual hose record
4676797 Hose Repair Specifications
Excavator · Hitachi · ZX210W-3 · Swivel Joint
Finished length1,650 mm
Locate this hose

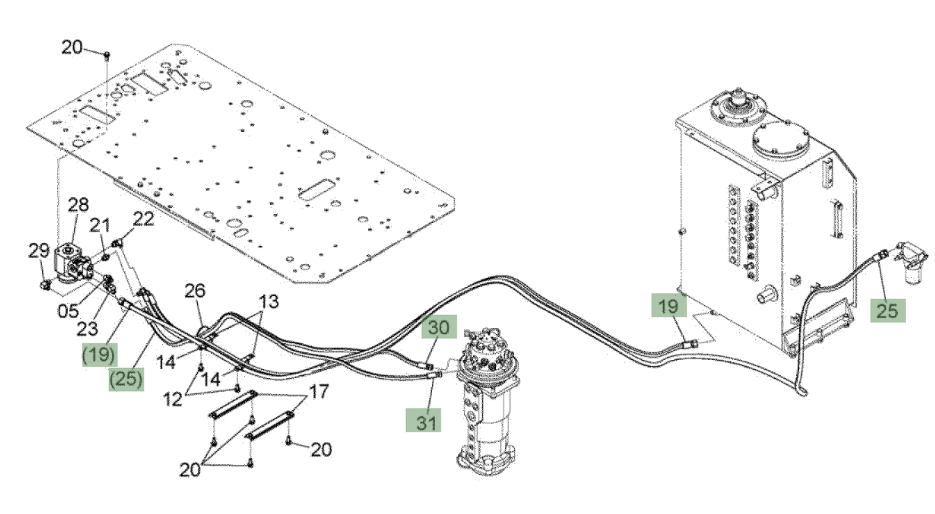

Installation diagram — Pipe No. 31
Locate Pipe No. 31 in the diagram, then confirm part number 4676797 before removing the hose.
Repair specifications
- Part number
- 4676797
- Diagram pipe number
- 31
- Installation route
- 回转接头~方向盘
- Hose specification
- DN10;2SN-6;20.5MPa
- Finished length
- 1,650 mm
- Working pressure
- 20.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
Diagram Pipe No. 3A
4315339
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 1,050 mm
- Specification
- DN10;4SH-06;44.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Diagram Pipe No. 24A
4294591
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 650 mm
- Specification
- DN12;1SN-8;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 950 mm
- Specification
- DN12;4SP-8;41.5Mpa
- Left fitting
- 45°美制内螺纹平面密封
- Right fitting
- 90° light-series flangeOriginal Chinese: 90°法兰-轻型
- Length
- 820 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
Diagram Pipe No. 4A
4305229
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 1,000 mm
- Specification
- DN10;2SN-06;20.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Length
- 1,000 mm
- Specification
- DN10;2SN-06;20.5MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Diagram Pipe No. 32
9265997
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 520 mm
- Specification
- DN12;1SN-8;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
