Individual hose record

4360873 Hose Repair Specifications

Excavator · Hitachi · EX110-5 · Pedal

Finished length950 mm

Locate this hose

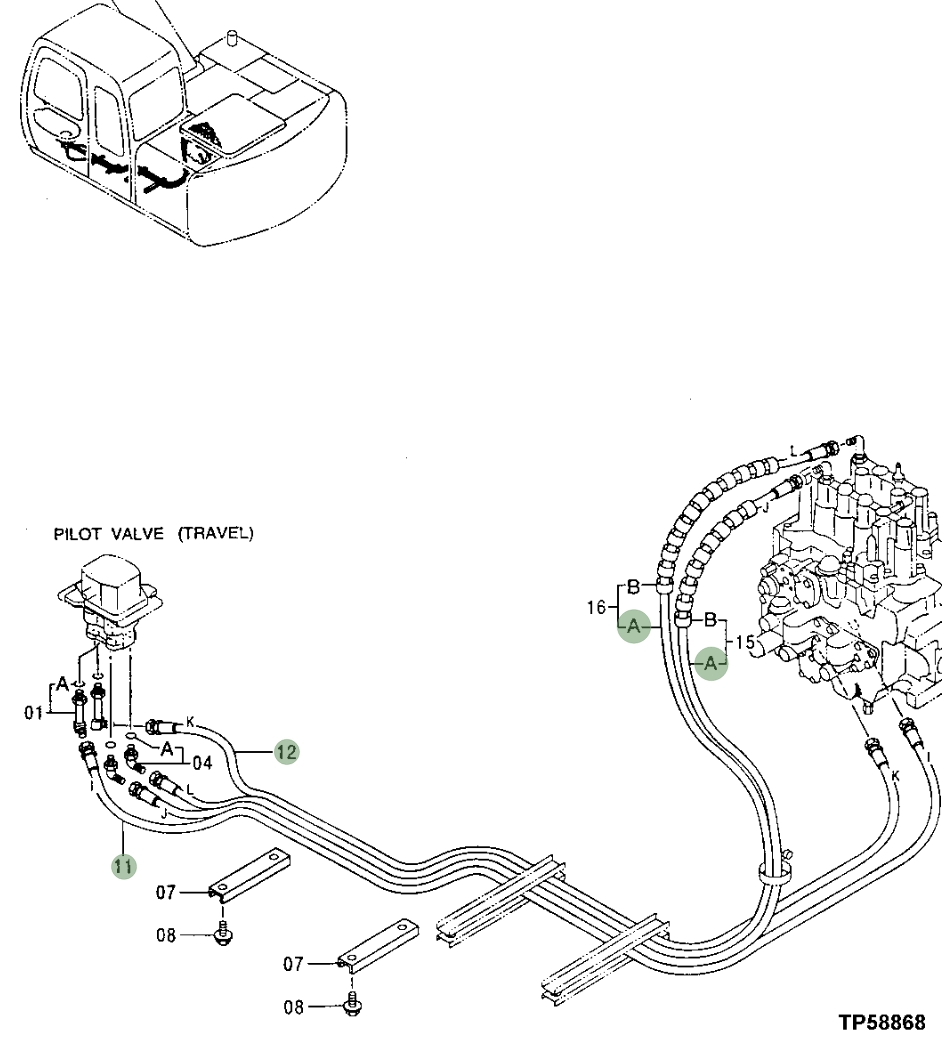

Installation diagram — Pipe No. 16A

Locate Pipe No. 16A in the diagram, then confirm part number 4360873 before removing the hose.

Hitachi EX110-5 installation diagram showing hydraulic hose 4360873 at Pipe No. 16A — Hitachi EX110-5Part 4360873 · Pipe No. 16AOpen full-size diagram

Repair specifications

Part number: 4360873
Diagram pipe number: 16A
Installation route: 行走推杆~分配阀上右
Hose specification: DN10;1SN-06;18MPa
Finished length: 950 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 11

4432099

Installation route: 行走推杆~分配阀下右

Length: 2,500 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 美制内螺纹74°内锥双六角

View full repair specifications

Diagram Pipe No. 15A

4359145

Installation route: 行走推杆~分配阀上左

Length: 2,850 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 10

4346008

Installation route: 行走推杆~进回油阀

Length: 1,100 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 15

9149527

Installation route: 行走推杆~分配阀上左

Length: 2,850 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
