Individual hose record
4606148 Hose Repair Specifications
Excavator · Hitachi · ZX210W · Attachments – Lock Valve
Finished length2,300 mm
Locate this hose

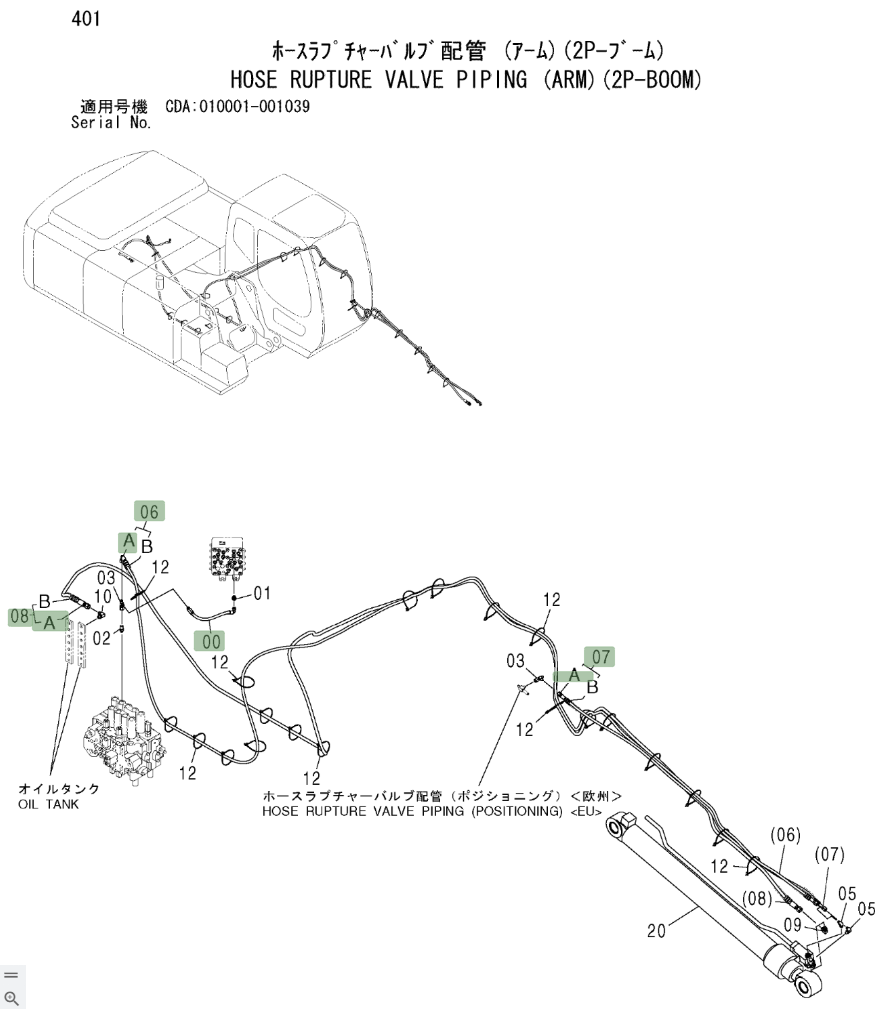

Installation diagram — Pipe No. 7A
Locate Pipe No. 7A in the diagram, then confirm part number 4606148 before removing the hose.
Repair specifications
- Part number
- 4606148
- Diagram pipe number
- 7A
- Installation route
- 小臂油缸锁止阀~大臂(锁止阀)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,300 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
