Individual hose record
4357695 Hose Repair Specifications
Excavator · Hitachi · ZX200F · Attachments – Breaker
Finished length1,480 mm
Locate this hose

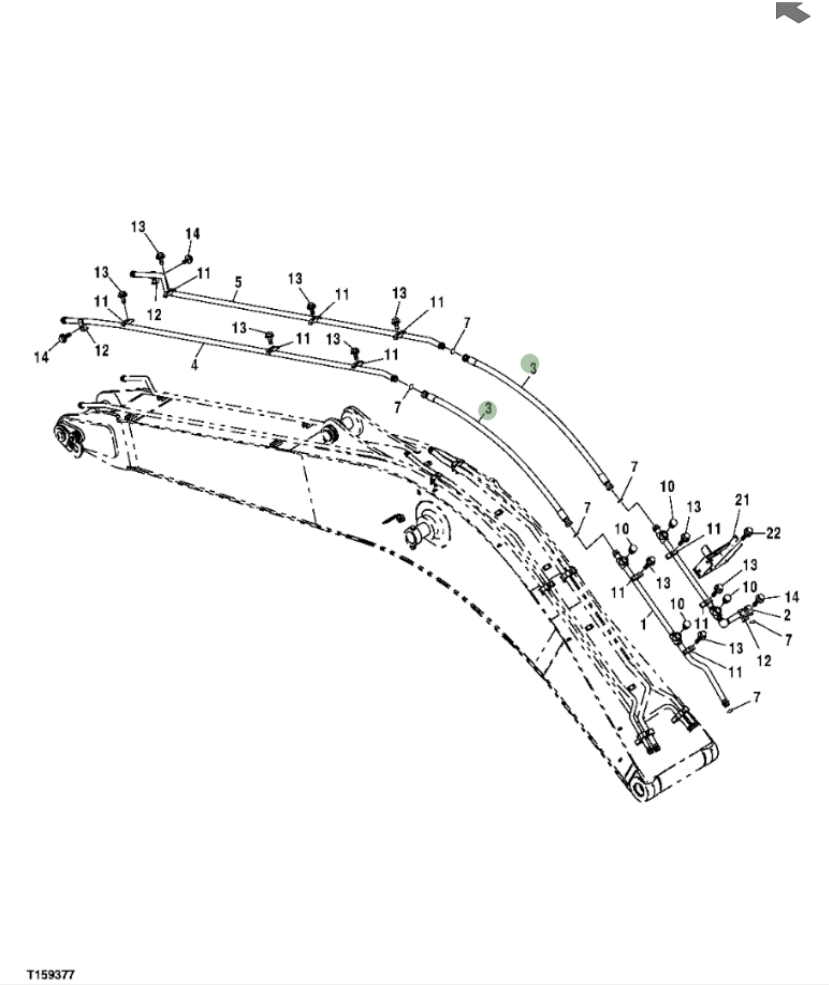

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 4357695 before removing the hose.
Repair specifications
- Part number
- 4357695
- Diagram pipe number
- 3
- Installation route
- 大臂(前段)~大臂(后段)
- Hose specification
- DN25;4SP-16;35Mpa
- Finished length
- 1,480 mm
- Working pressure
- 35 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
