Individual hose record

KHJ2165 Hose Repair Specifications

Excavator · Case · CX180E LC · Attachments – Breaker

Finished length2,900 mm

Locate this hose

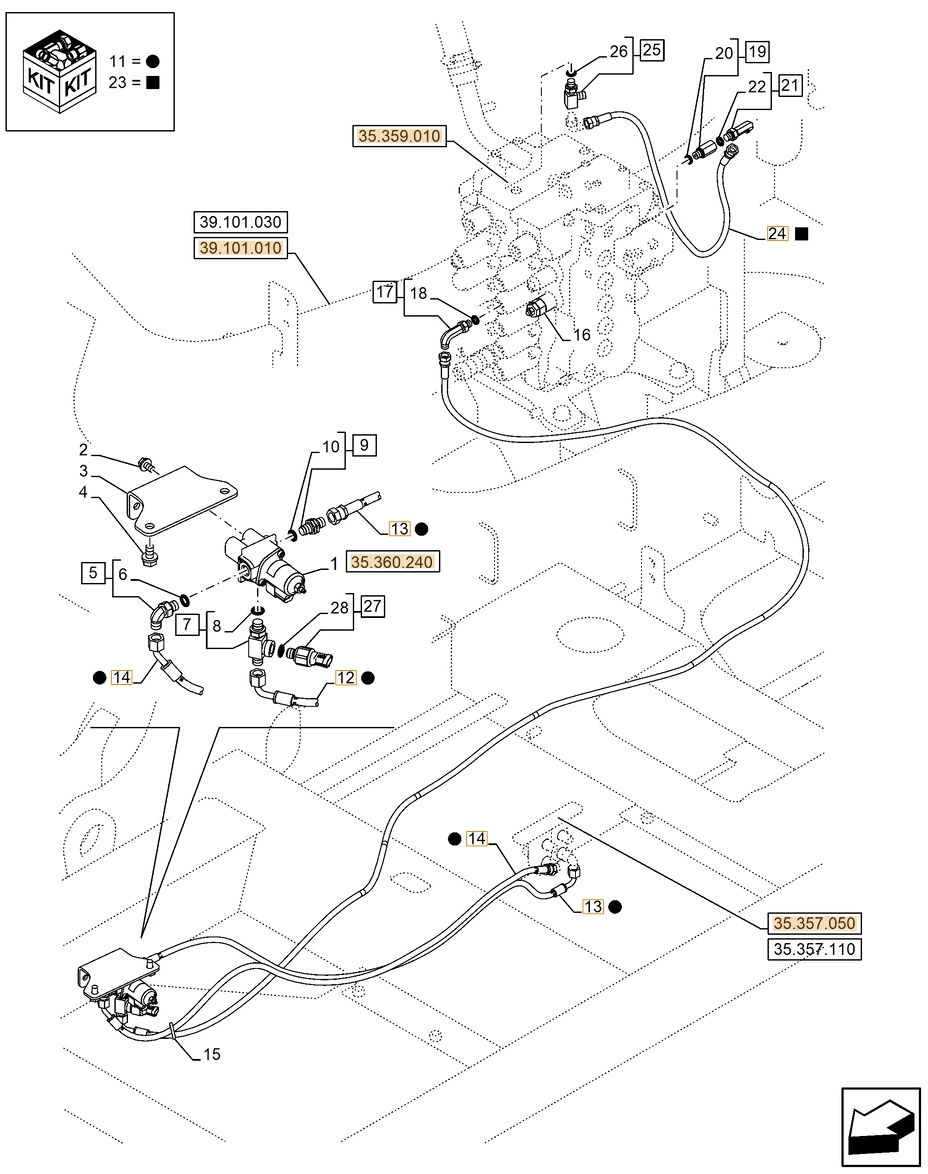

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number KHJ2165 before removing the hose.

Case CX180E LC installation diagram showing hydraulic hose KHJ2165 at Pipe No. 12 — **Case CX180E LC**Part KHJ2165 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: KHJ2165
Diagram pipe number: 12
Installation route: 破碎器踏板~分配阀前
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,900 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
