Individual hose record
4316557 Hose Repair Specifications
Excavator · Hitachi · EX300LC-2 · Solenoid Valve
Finished length1,500 mm
Locate this hose

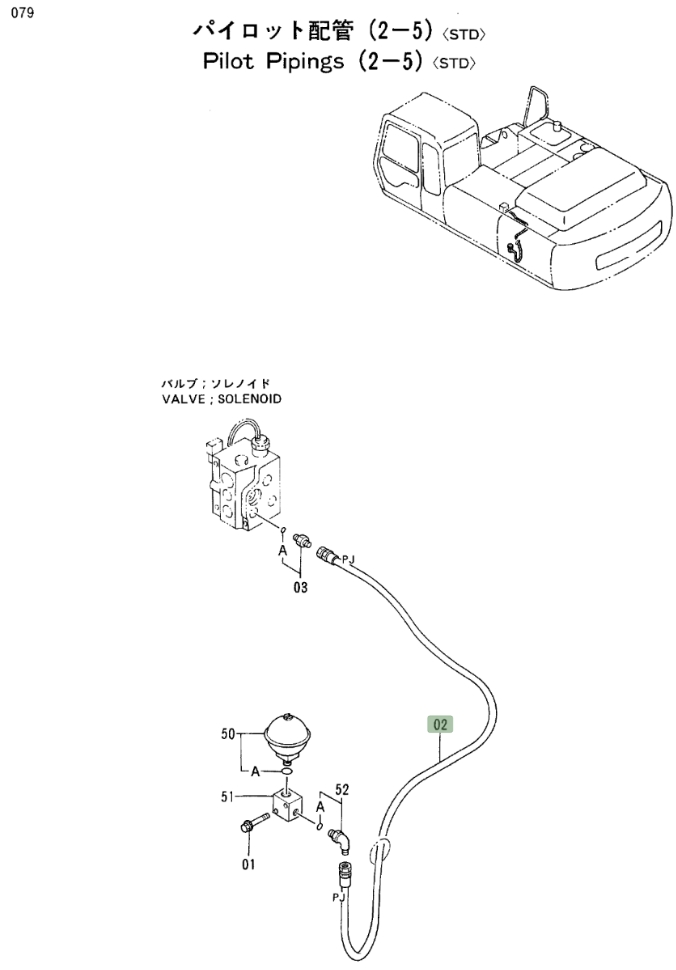

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4316557 before removing the hose.
Repair specifications
- Part number
- 4316557
- Diagram pipe number
- 2
- Installation route
- 电磁阀~蓄能器
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 1,500 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
