Individual hose record
4449264 Hose Repair Specifications
Excavator · Hitachi · ZX180W · Attachments – Breaker
Finished length2,250 mm
Locate this hose

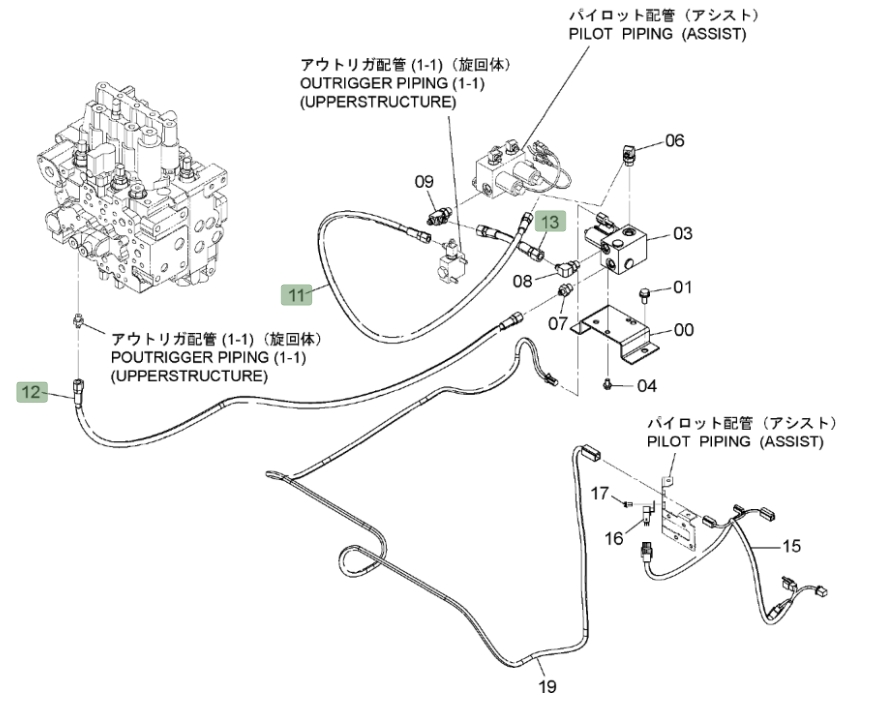

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4449264 before removing the hose.
Repair specifications
- Part number
- 4449264
- Diagram pipe number
- 13
- Installation route
- 电磁阀液压管路
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 2,250 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
