Individual hose record
730502000092 Hose Repair Specifications
Excavator · Sunward · SWE20F · Hydraulic Pump
Finished length350 mm
Locate this hose

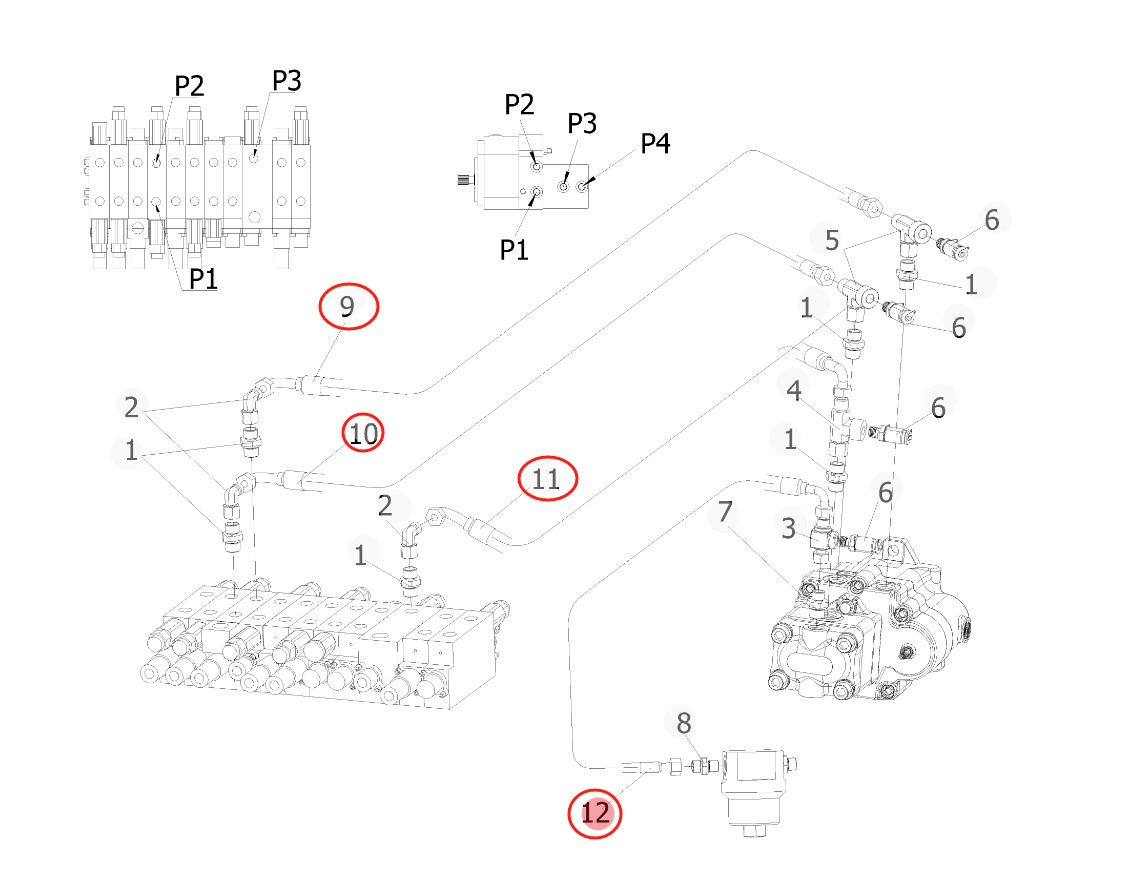

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 730502000092 before removing the hose.
Repair specifications
- Part number
- 730502000092
- Diagram pipe number
- 12
- Installation route
- 液压泵~液压油滤清器
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 350 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
