Individual hose record
4685580 Hose Repair Specifications
Excavator · Hitachi · ZX135US-3 · Attachments – Breaker
Finished length1,900 mm
Locate this hose

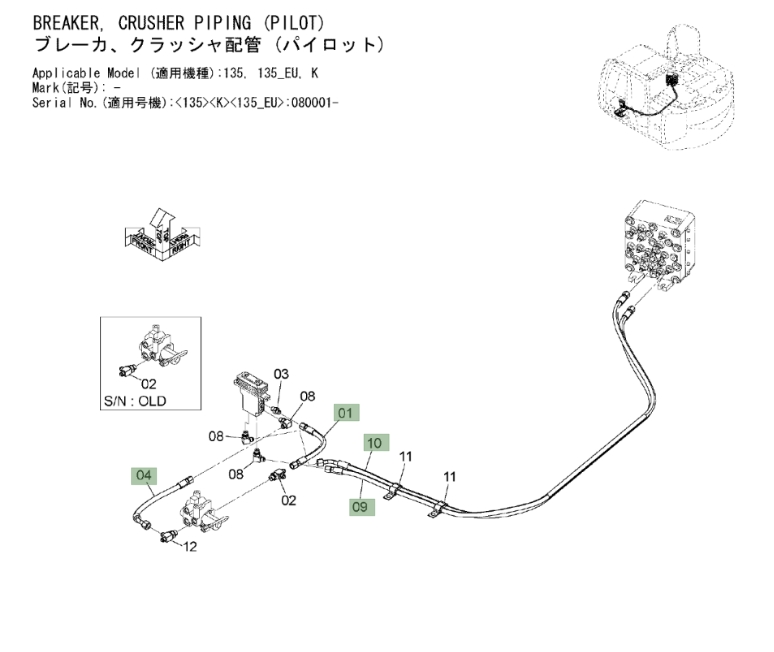

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4685580 before removing the hose.
Repair specifications
- Part number
- 4685580
- Diagram pipe number
- 9
- Installation route
- 破碎器踏板~中转接头
- Hose specification
- DN10;1SN-6;18MPa
- Finished length
- 1,900 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥双六角
- Right fitting
- 美制内螺纹74°内锥双六角
- Quantity
- 1
