Individual hose record

4227045 Hose Repair Specifications

Excavator · Hitachi · ZX210-5G · Hydraulic Pump

Finished length650 mm

Locate this hose

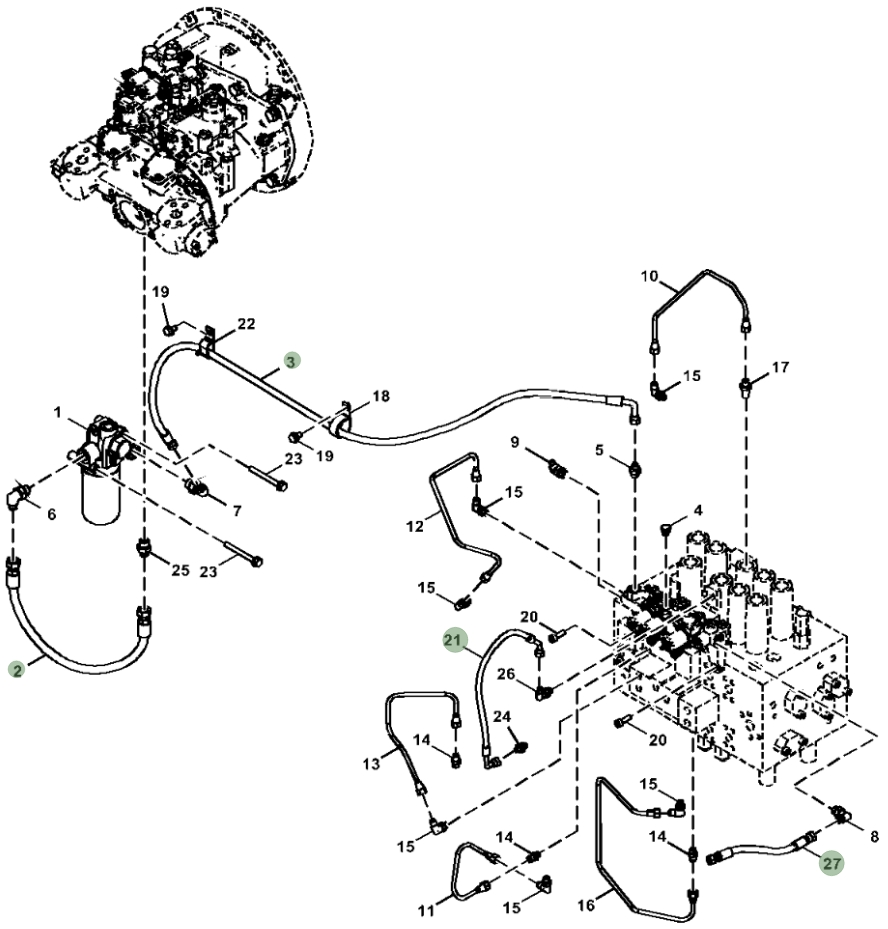

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4227045 before removing the hose.

Hitachi ZX210-5G installation diagram showing hydraulic hose 4227045 at Pipe No. 2
Hitachi ZX210-5GPart 4227045 · Pipe No. 2Open full-size diagram

Repair specifications

Part number
4227045
Diagram pipe number
2
Installation route
液压泵~先导滤芯
Hose specification
DN13;1SN-08;16MPa
Finished length
650 mm
Working pressure
16 MPa
Left fitting
美制内螺纹74°内锥
Right fitting
美制内螺纹74°内锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 8

4449326

Installation route: 液压泵上~中转接头

Length
2,000 mm
Specification
DN10;1SN-06;18MPa
Left fitting
美制内螺纹74°内锥
Right fitting
美制内螺纹74°内锥
View full repair specifications

Diagram Pipe No. 5

4644625

Installation route: 液压泵~吸油铁管

Length
680 mm
Specification
DN19;2SN-12;21.5MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 7

4674819

Installation route: 液压泵~液压油箱

Length
430 mm
Specification
DN6;1SN-04;22.5MPa
Left fitting
美制内螺纹74°内锥
Right fitting
90°美制内螺纹74°内锥
View full repair specifications

Diagram Pipe No. 9

4700141

Installation route: 液压泵上~中转接头

Length
2,050 mm
Specification
DN10;1SN-06;18MPa
Left fitting
美制内螺纹74°内锥
Right fitting
美制内螺纹74°内锥
View full repair specifications
