Individual hose record
4252837 Hose Repair Specifications
Excavator · Hitachi · EX110-5 · Grease Lines
Finished length2,750 mm
Locate this hose

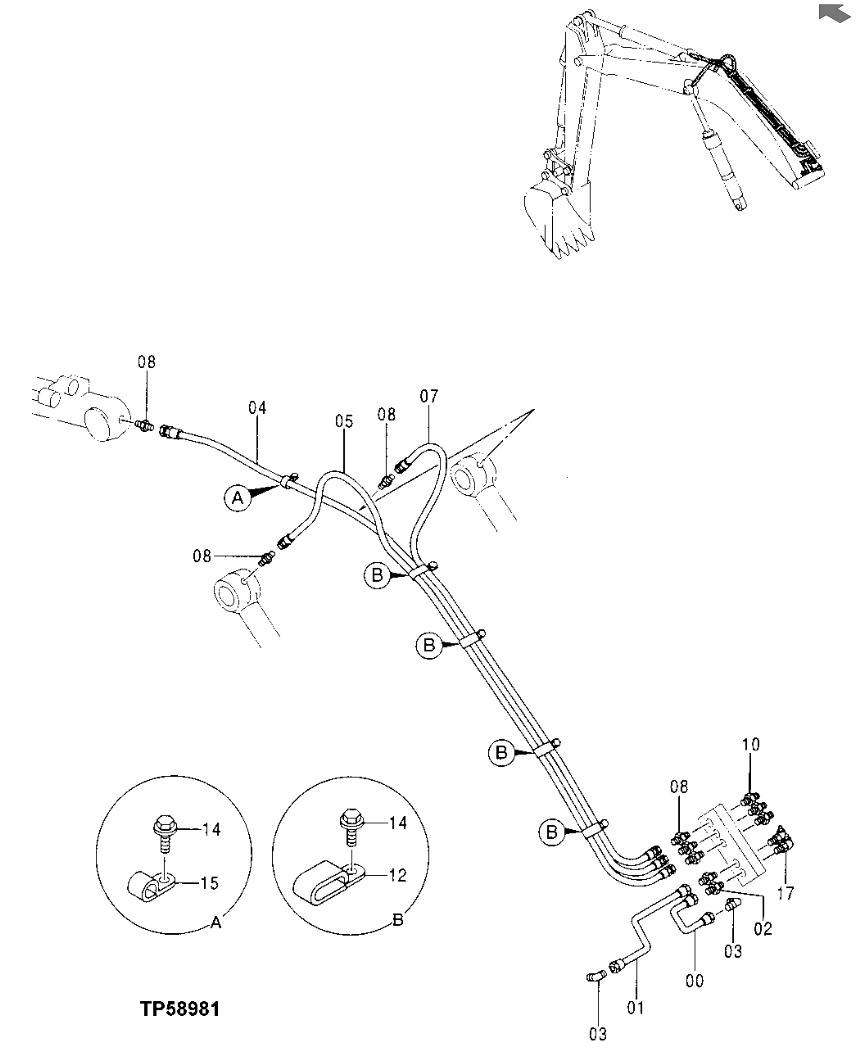

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 4252837 before removing the hose.
Repair specifications
- Part number
- 4252837
- Diagram pipe number
- 4
- Installation route
- Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 2,750 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
