Individual hose record
DS2093008 Hose Repair Specifications
Excavator · Doosan · DX62R-3 · Swing Motor
Finished length1,600 mm
Locate this hose

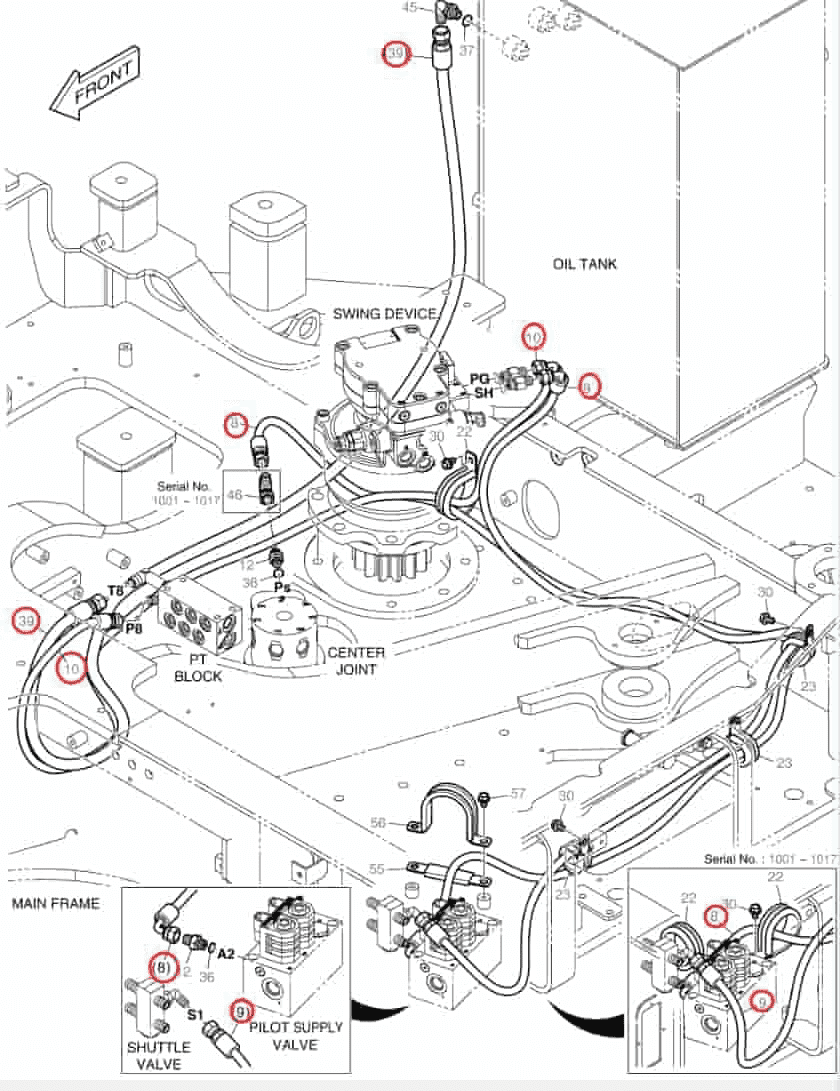

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number DS2093008 before removing the hose.
Repair specifications
- Part number
- DS2093008
- Diagram pipe number
- 10
- Installation route
- 回转马达PG口~进回油阀P8口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,600 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
