Individual hose record
4304463 Hose Repair Specifications
Excavator · Hitachi · ZX670LC-6 · Solenoid Valve
Finished length950 mm
Locate this hose

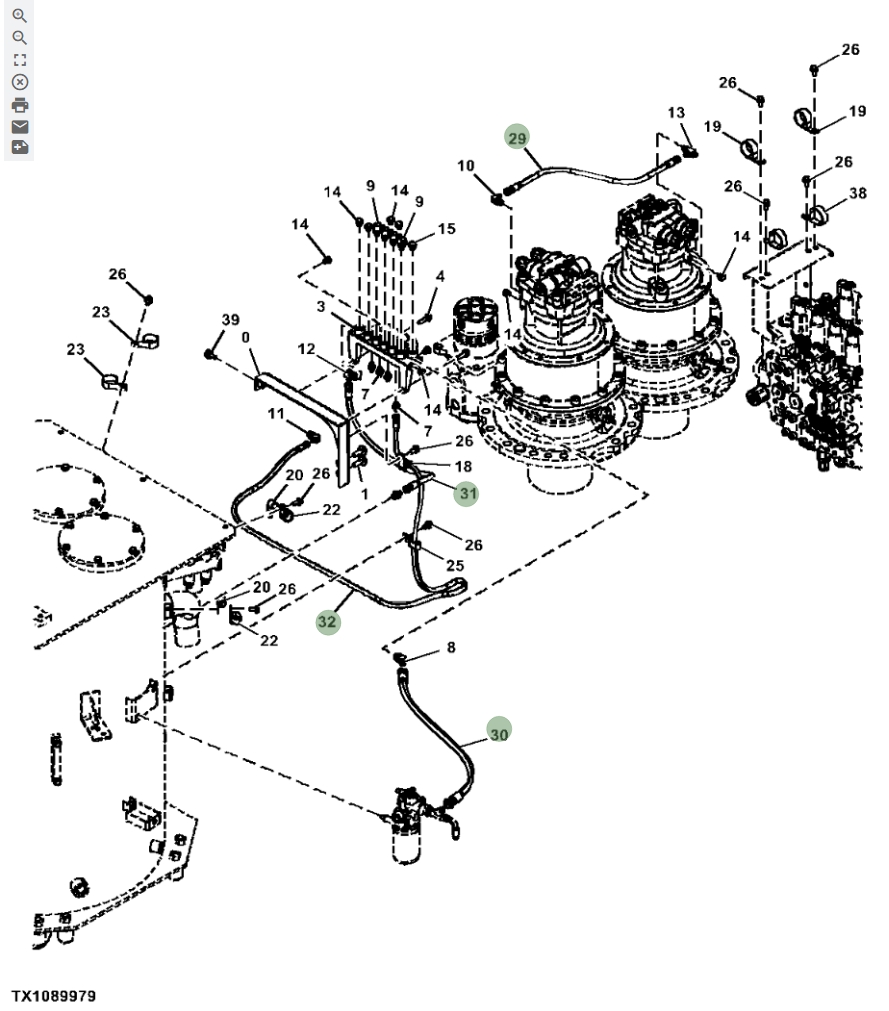

Installation diagram — Pipe No. 30
Locate Pipe No. 30 in the diagram, then confirm part number 4304463 before removing the hose.
Repair specifications
- Part number
- 4304463
- Diagram pipe number
- 30
- Installation route
- 电磁阀(液压油箱)~先导滤芯
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 950 mm
- Working pressure
- 16 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
