Individual hose record

4630946 Hose Repair Specifications

Excavator · Hitachi · ZX225USLC-3 · Control Valve

Finished length850 mm

Locate this hose

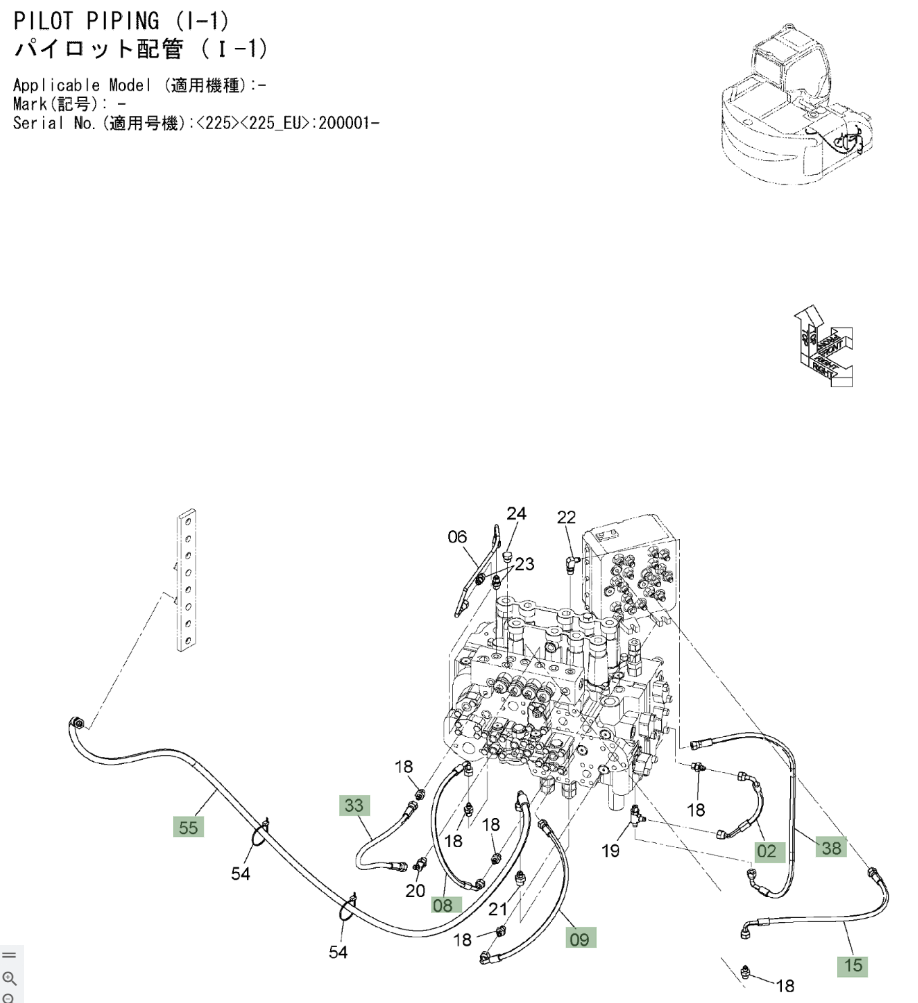

Installation diagram — Pipe No. 38

Locate Pipe No. 38 in the diagram, then confirm part number 4630946 before removing the hose.

Hitachi ZX225USLC-3 installation diagram showing hydraulic hose 4630946 at Pipe No. 38 — Hitachi ZX225USLC-3Part 4630946 · Pipe No. 38Open full-size diagram

Repair specifications

Part number: 4630946
Diagram pipe number: 38
Installation route: 分配阀下~电磁阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 850 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 32

4643029

Installation route: 分配阀上~分配阀右

Length: 550 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 45°美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 8

4632041

Installation route: 分配阀右~电磁阀

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°美制内螺纹74°内锥
Right fitting: 45°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 35

4427351

Installation route: 分配阀左~分配阀左

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90°美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 37

4630947

Installation route: 分配阀左~电磁阀

Length: 850 mm
Specification: DN6;1SN-04;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 33

4452733

Installation route: 分配阀右~分配阀右

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications
