Individual hose record
4713141 Hose Repair Specifications
Excavator · Hitachi · ZX470-5A · Supply and Return Valve
Finished length4,200 mm
Locate this hose

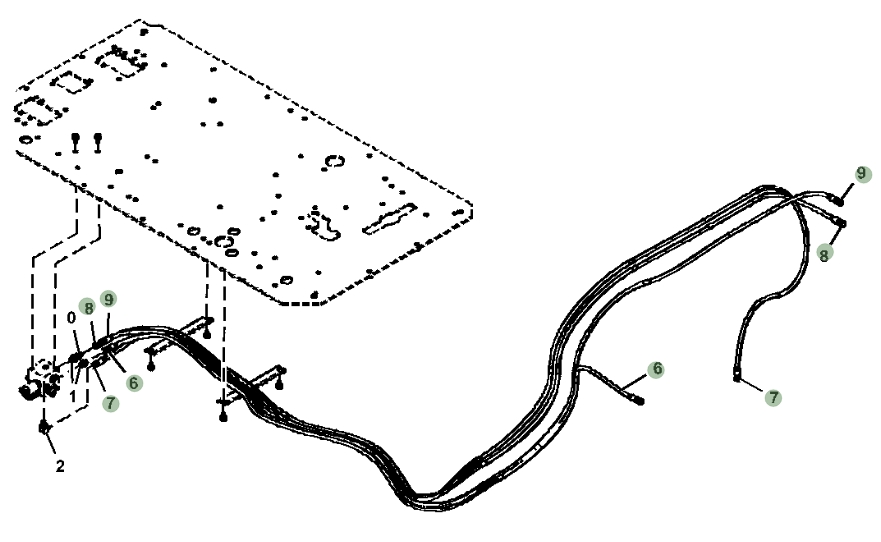

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4713141 before removing the hose.
Repair specifications
- Part number
- 4713141
- Diagram pipe number
- 8
- Installation route
- 进回油阀~中转接头
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 4,200 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
