Individual hose record
4367363 Hose Repair Specifications
Excavator · Hitachi · EX700 · Attachments – Breaker
Finished length2,400 mm
Locate this hose

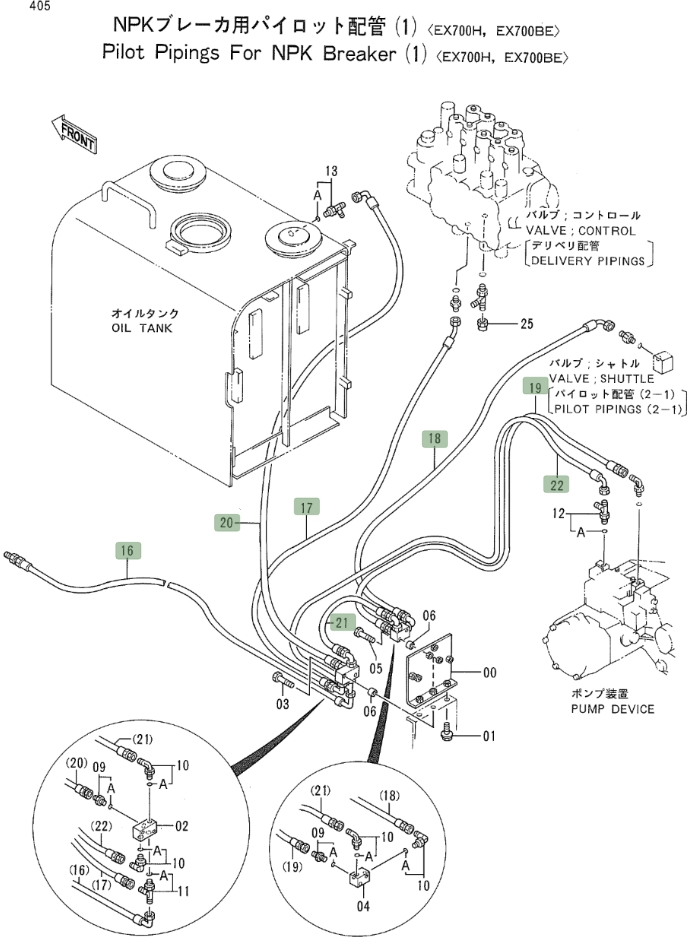

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4367363 before removing the hose.
Repair specifications
- Part number
- 4367363
- Diagram pipe number
- 16
- Installation route
- 过渡阀块(隔板)~过渡阀块(破碎器)
- Hose specification
- DN10;1SN-6;7MPa
- Finished length
- 2,400 mm
- Working pressure
- 7 MPa
- Left fitting
- 90°美制内螺纹37°内锥
- Right fitting
- 美制外螺纹37°外锥
- Quantity
- 1
