- Length
- 370 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Individual hose record
DS2093300 Hose Repair Specifications
Excavator · Doosan · DX27Z · Hydraulic Tank
Finished length420 mm
Locate this hose

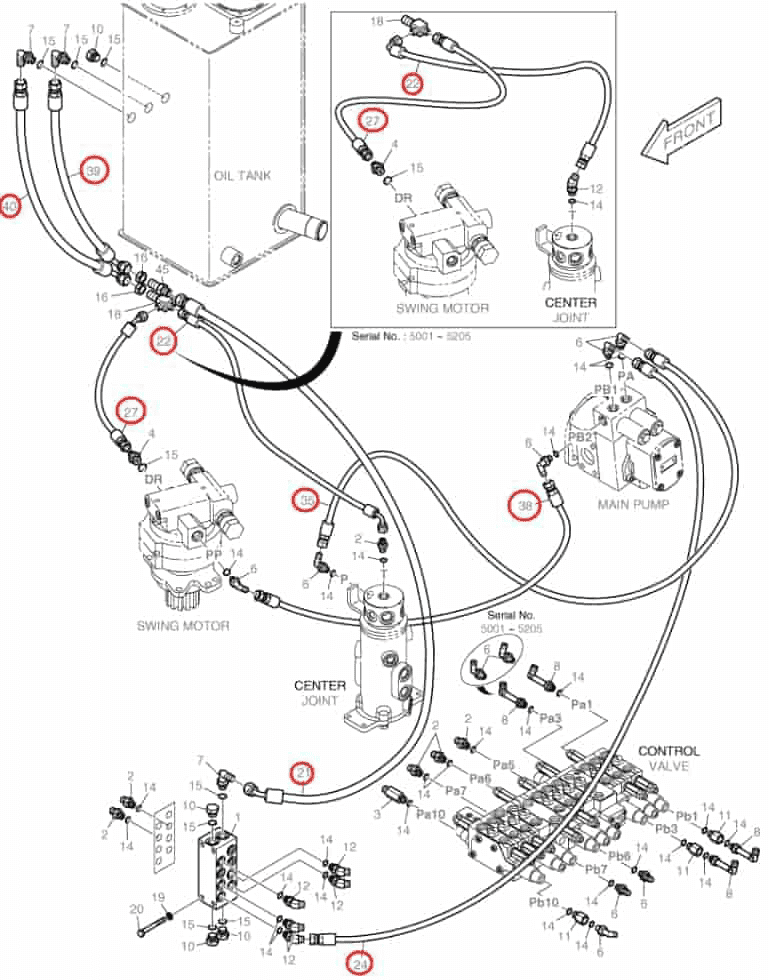

Installation diagram — Pipe No. 40
Locate Pipe No. 40 in the diagram, then confirm part number DS2093300 before removing the hose.
Repair specifications
- Part number
- DS2093300
- Diagram pipe number
- 40
- Installation route
- 液压油箱~过渡接头(液压油箱)
- Hose specification
- -
- Finished length
- 420 mm
- Left fitting
- Female threadOriginal Chinese: 内螺纹
- Right fitting
- 90° elbow, female threadOriginal Chinese: 90°内螺纹
- Quantity
- 1
