Individual hose record

4635267 Hose Repair Specifications

Excavator · Hitachi · ZX240LC-3 · Attachments

Finished length600 mm

Locate this hose

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number 4635267 before removing the hose.

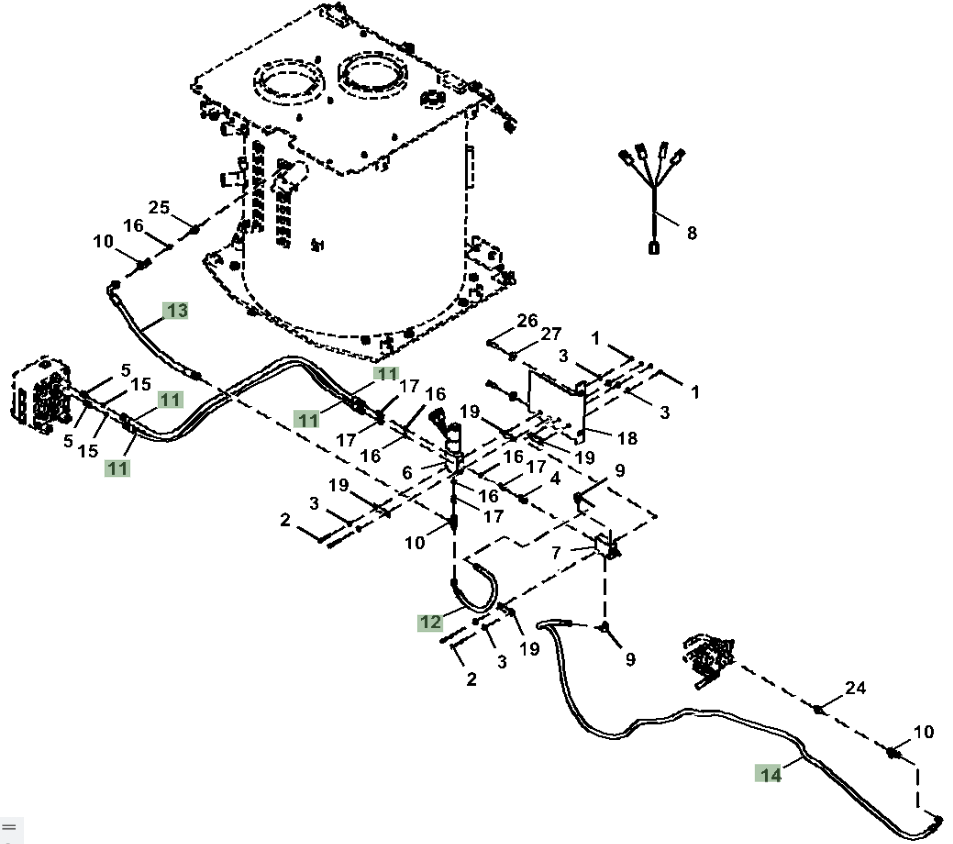

Hitachi ZX240LC-3 installation diagram showing hydraulic hose 4635267 at Pipe No. 12 — **Hitachi ZX240LC-3**Part 4635267 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: 4635267
Diagram pipe number: 12
Installation route: 电磁阀~液压压力阀
Hose specification: DN10;1SN-6;7Mpa
Finished length: 600 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 49

9263866

Installation route: 控制阀(辅助)~回油铁管(液压油箱)

Length: 2,150 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 13

4683010

Installation route: 液压油箱~电磁阀

Length: 550 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 18

4285799

Installation route: 先导泵~控制阀(辅助)

Length: 750 mm
Specification: DN12;4SP-08;34.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 57

4678902

Installation route: 中转接头~接线板(隔板)

Length: 1,600 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 11

4696560

Installation route: 中转接头~电磁阀

Length: 1,200 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 17

4644618

Installation route: 先导泵~吸油铁管

Length: 480 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 61

4678903

Installation route: 中转接头~接线板(隔板)

Length: 1,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 49A

4641744

Installation route: 控制阀(辅助)~回油铁管(液压油箱)

Length: 2,150 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
