Individual hose record

4254436 Hose Repair Specifications

Excavator · Hitachi · EX100M-3 · Boom Assembly

Finished length730 mm

Locate this hose

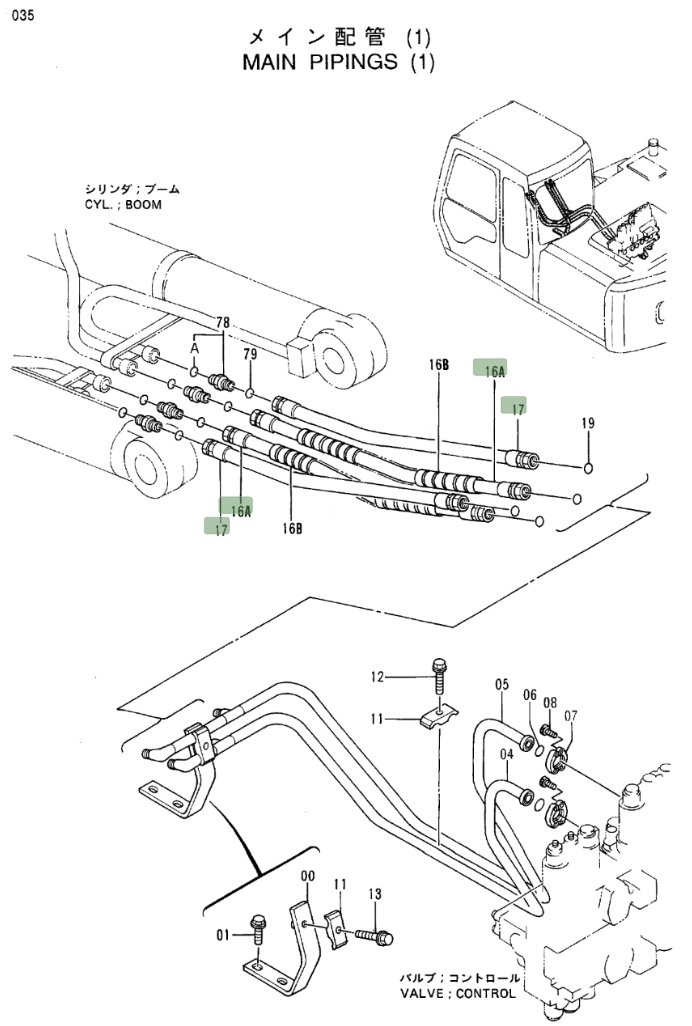

Installation diagram — Pipe No. 16A

Locate Pipe No. 16A in the diagram, then confirm part number 4254436 before removing the hose.

Hitachi EX100M-3 installation diagram showing hydraulic hose 4254436 at Pipe No. 16A — **Hitachi EX100M-3**Part 4254436 · Pipe No. 16AOpen full-size diagram

Repair specifications

Part number: 4254436
Diagram pipe number: 16A
Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3
Hose specification: DN12;4SP-8;34.5Mpa
Finished length: 730 mm
Working pressure: 34.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2
