Individual hose record
4437902 Hose Repair Specifications
Excavator · Hitachi · ZX130-5N · Control Valve
Finished length1,100 mm
Locate this hose

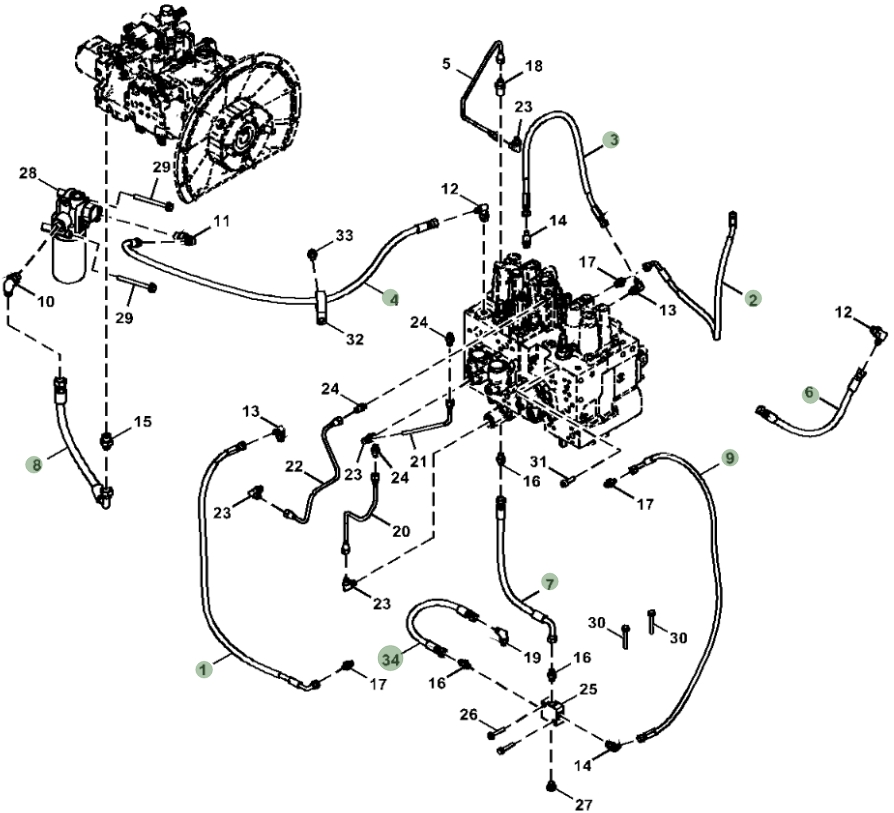

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 4437902 before removing the hose.
Repair specifications
- Part number
- 4437902
- Diagram pipe number
- 9
- Installation route
- 分配阀左~节流阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,100 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
