Individual hose record
KEJ0396 Hose Repair Specifications
Excavator · Case · CX350D LC · Hydraulic Tank
Finished length1,000 mm
Locate this hose

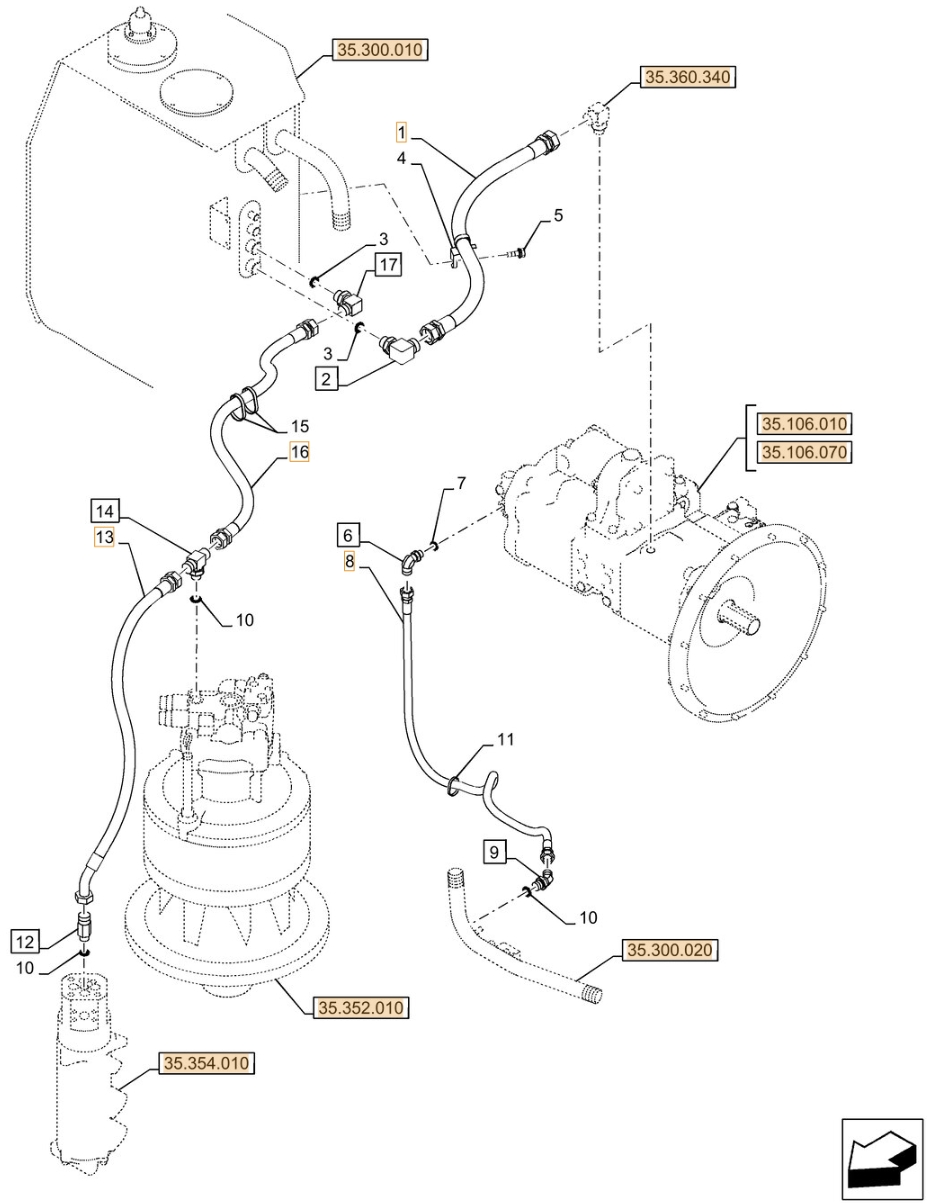

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number KEJ0396 before removing the hose.
Repair specifications
- Part number
- KEJ0396
- Diagram pipe number
- 16
- Installation route
- 液压油箱~回转马达
- Hose specification
- DN19;2SN-12;21.5MPa
- Finished length
- 1,000 mm
- Working pressure
- 21.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Quantity
- 1
