4429714 Hose Repair Specifications

Excavator · Hitachi · EX27U · Attachments – Breaker

Finished length580 mm

Locate this hose

Installation diagram — Pipe No. 38

Locate Pipe No. 38 in the diagram, then confirm part number 4429714 before removing the hose.

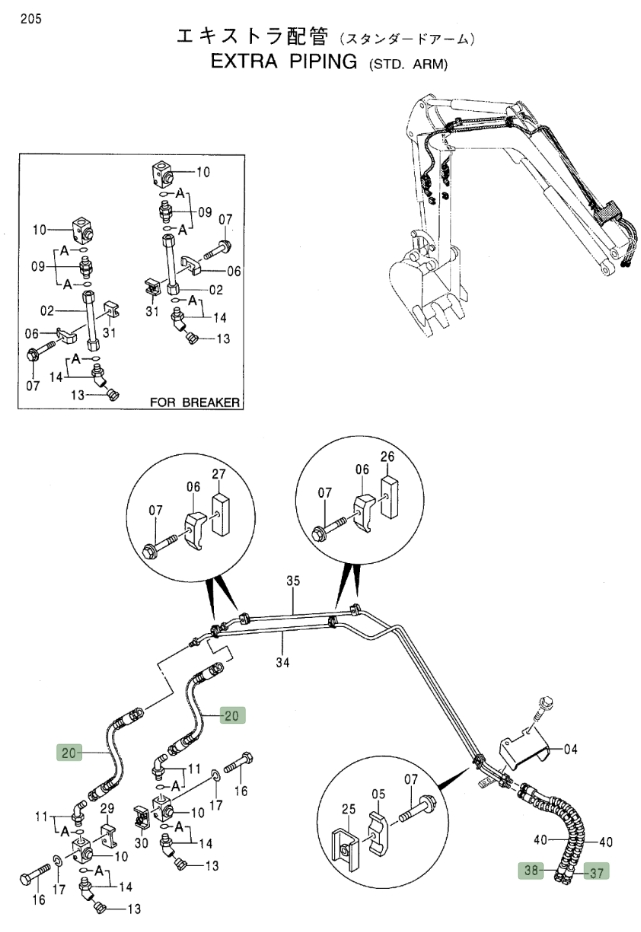

Hitachi EX27U installation diagram showing hydraulic hose 4429714 at Pipe No. 38 — Hitachi EX27UPart 4429714 · Pipe No. 38Open full-size diagram

Repair specifications

Part number: 4429714
Diagram pipe number: 38
Installation route: 大臂(破碎器)~过渡阀块(破碎器)
Hose specification: DN12;2SN-8;20.5MPa
Finished length: 580 mm
Working pressure: 20.5 MPa
Left fitting: 英制内螺纹30°外锥
Right fitting: 英制内螺纹30°外锥
Quantity: 1
