KHJ2198 Hose Repair Specifications

Excavator · Case · CX180B · Pedal

Finished length2,850 mm

Locate this hose

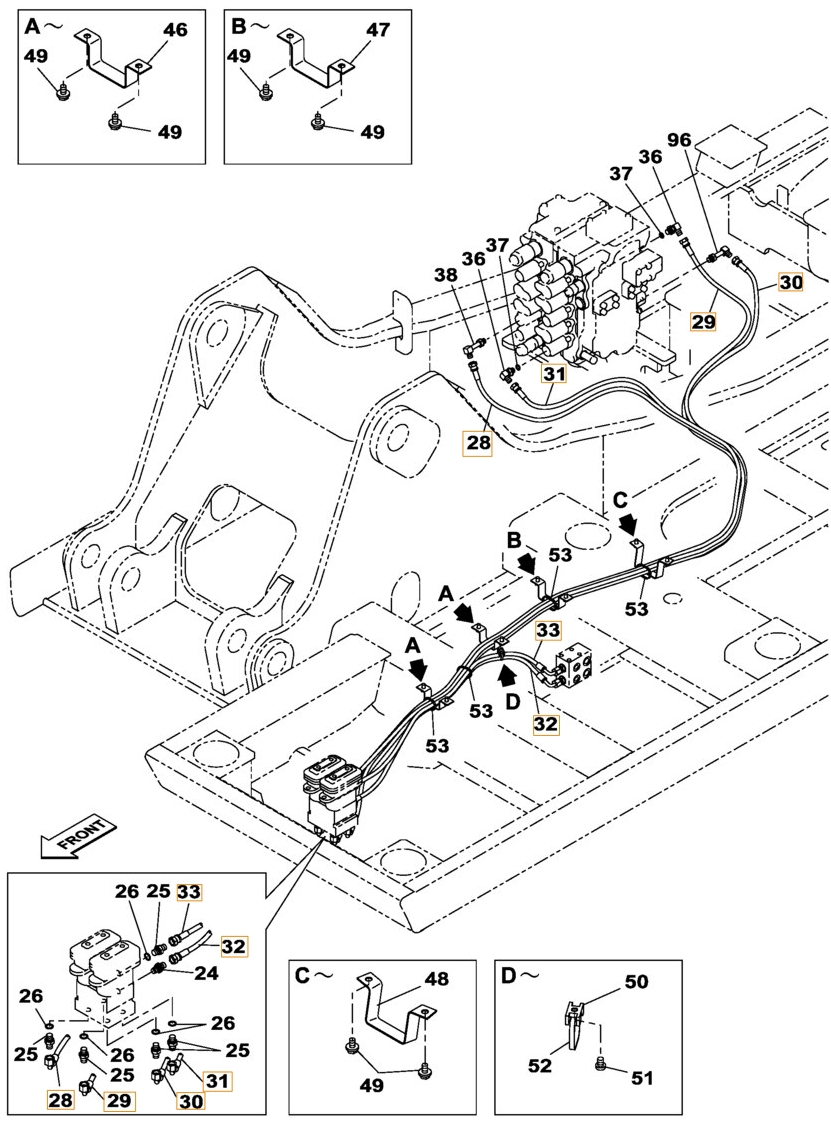

Installation diagram — Pipe No. 29

Locate Pipe No. 29 in the diagram, then confirm part number KHJ2198 before removing the hose.

Part number: KHJ2198
Diagram pipe number: 29
Installation route: 行走踏板~分配阀后
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,850 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 31

Installation route: 行走踏板~分配阀前

Length: 2,700 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 28

Installation route: 行走踏板~分配阀前

Length: 2,900 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 32

Installation route: 行走踏板~进回油阀

Length: 950 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
