Individual hose record
4296004 Hose Repair Specifications
Excavator · Hitachi · EX700 · Attachments
Finished length400 mm
Locate this hose

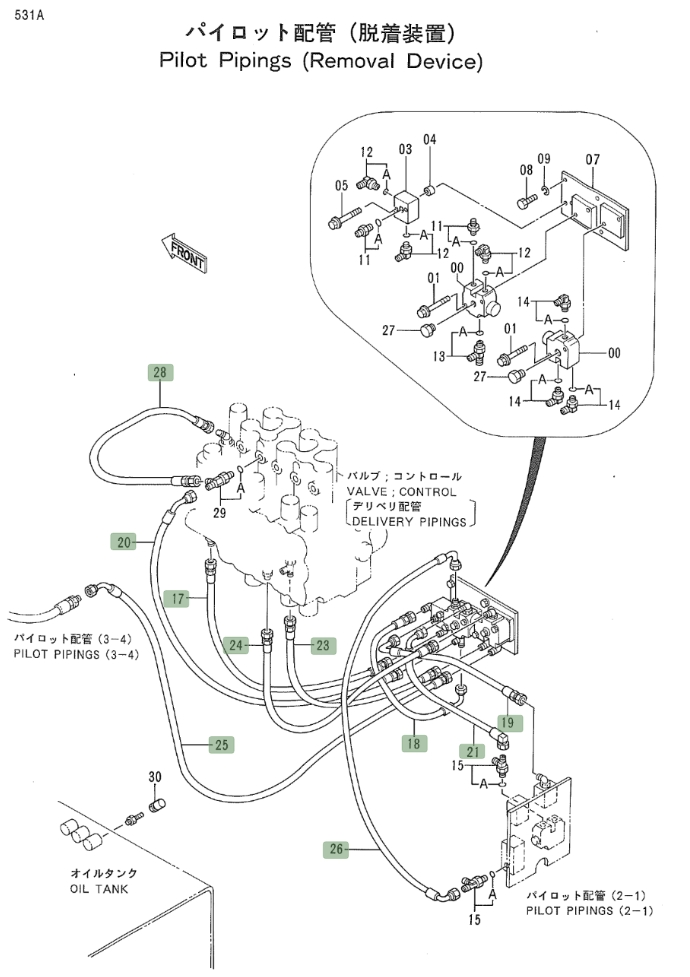

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 4296004 before removing the hose.
Repair specifications
- Part number
- 4296004
- Diagram pipe number
- 18
- Installation route
- 电磁阀(隔板)~过渡阀块(隔板)
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 400 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
