Individual hose record
4366791 Hose Repair Specifications
Excavator · Hitachi · EX550LC-3 · Pedal
Finished length1,000 mm
Locate this hose

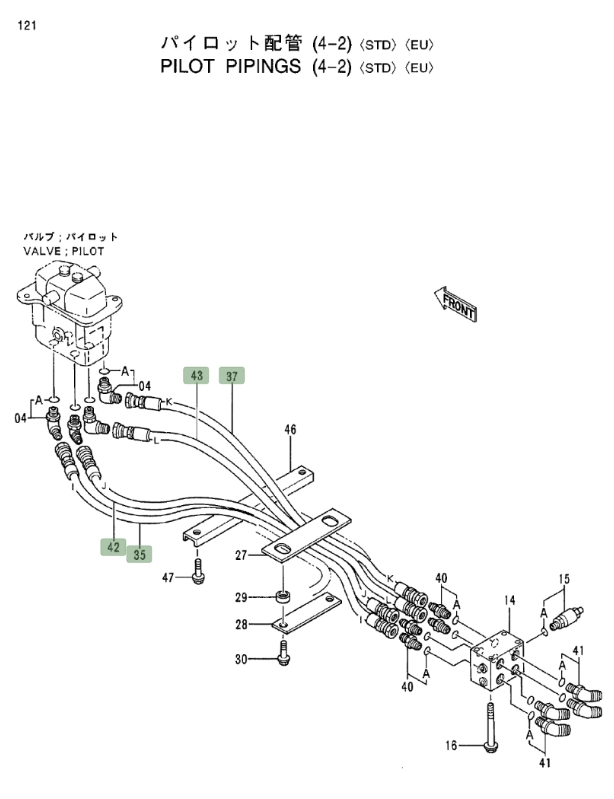

Installation diagram — Pipe No. 43
Locate Pipe No. 43 in the diagram, then confirm part number 4366791 before removing the hose.
Repair specifications
- Part number
- 4366791
- Diagram pipe number
- 43
- Installation route
- 行走踏板~过渡阀块(行走踏板)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,000 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
