Individual hose record
4702987 Hose Repair Specifications
Excavator · Hitachi · ZX370FLC-LL-6N · Attachments
Finished length750 mm
Locate this hose

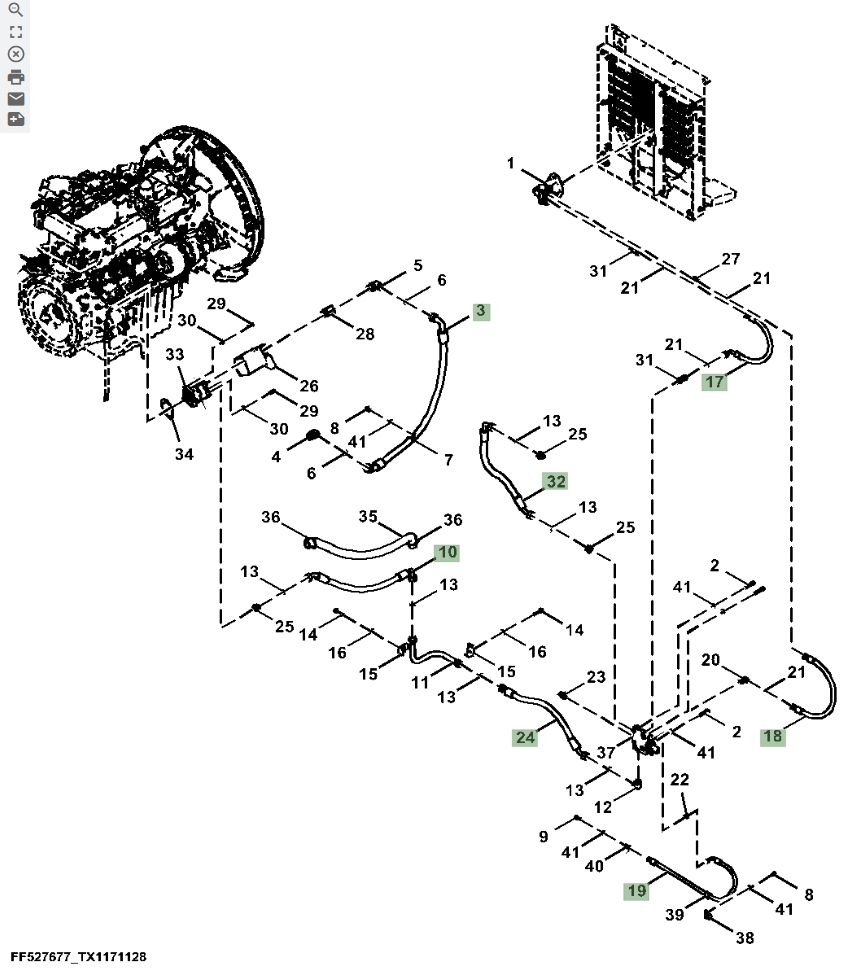

Installation diagram — Pipe No. 24
Locate Pipe No. 24 in the diagram, then confirm part number 4702987 before removing the hose.
Repair specifications
- Part number
- 4702987
- Diagram pipe number
- 24
- Installation route
- 电磁阀(散热器)~铁管(散热器)
- Hose specification
- DN19;2SN-12;21Mpa
- Finished length
- 750 mm
- Working pressure
- 21 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Quantity
- 1
