- Length
- 760 mm
- Specification
- DN10;1SN-06;18MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Individual hose record
4630937 Hose Repair Specifications
Excavator · Hitachi · ZX160LC-3 · Control Lever
Finished length750 mm
Locate this hose

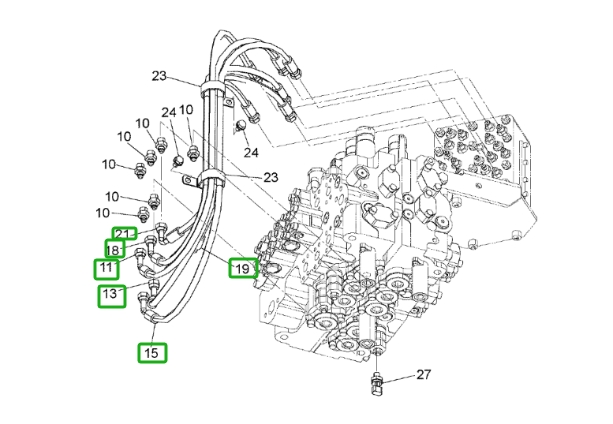

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 4630937 before removing the hose.
Repair specifications
- Part number
- 4630937
- Diagram pipe number
- 21
- Installation route
- 中转接头~分配阀下
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 750 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
