- Length
- 2,510 mm
- Specification
- DN13;2SN-08;27.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Individual hose record
DS2093529 Hose Repair Specifications
Excavator · Doosan · B55W-2 · Attachments – Breaker
Finished length1,050 mm
Locate this hose

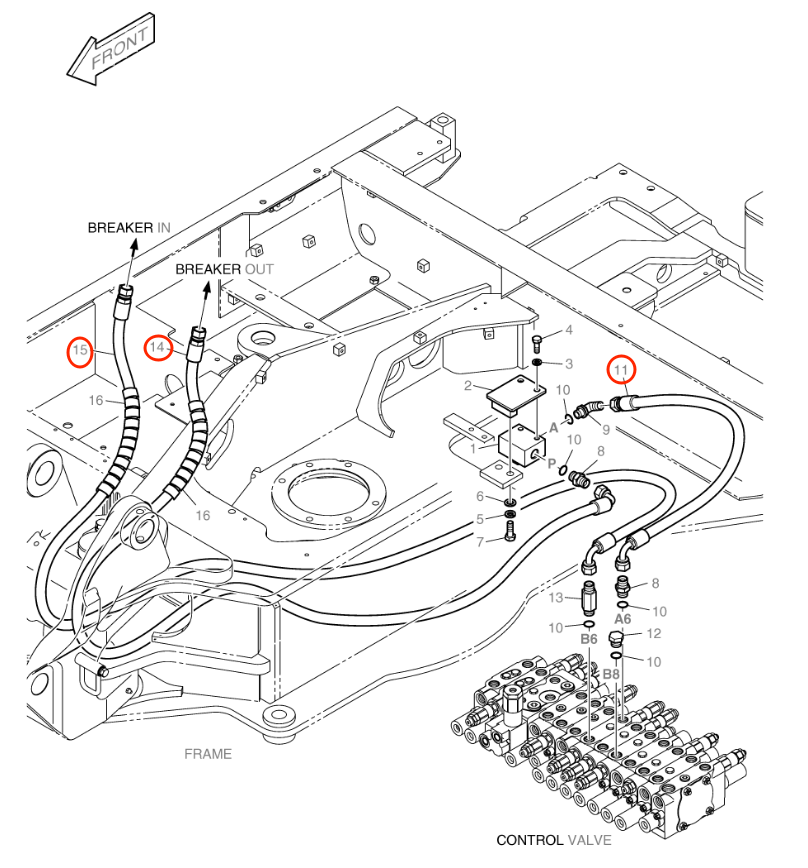

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number DS2093529 before removing the hose.
Repair specifications
- Part number
- DS2093529
- Diagram pipe number
- 11
- Installation route
- 分配阀A6口~开关阀A口
- Hose specification
- -
- Finished length
- 1,050 mm
- Left fitting
- Female threadOriginal Chinese: 内螺纹
- Right fitting
- 90° elbow, female threadOriginal Chinese: 90°内螺纹
- Quantity
- 1
