Individual hose record
4313443 Hose Repair Specifications
Excavator · Hitachi · ZX250F · Swivel Joint
Finished length2,500 mm
Locate this hose

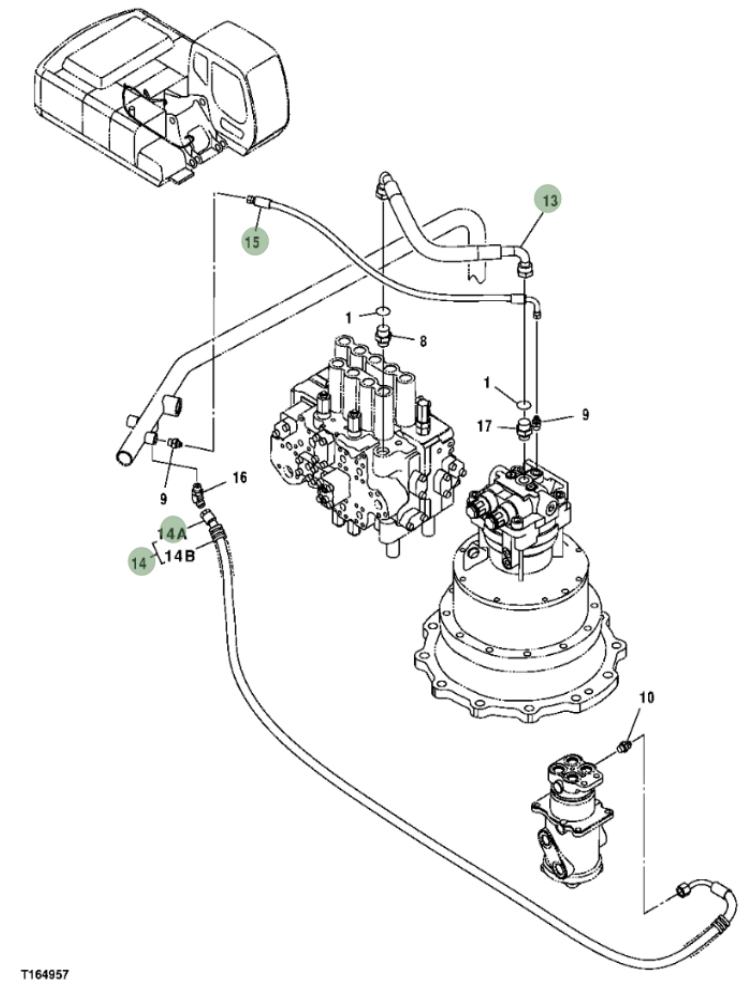

Installation diagram — Pipe No. 14A
Locate Pipe No. 14A in the diagram, then confirm part number 4313443 before removing the hose.
Repair specifications
- Part number
- 4313443
- Diagram pipe number
- 14A
- Installation route
- 回转接头~回油铁管(液压油箱)
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 2,500 mm
- Working pressure
- 16 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
