Individual hose record

DS2120066 Hose Repair Specifications

Excavator · Doosan · DX140LCR-5 · Swivel Joint

Finished length2,320 mm

Locate this hose

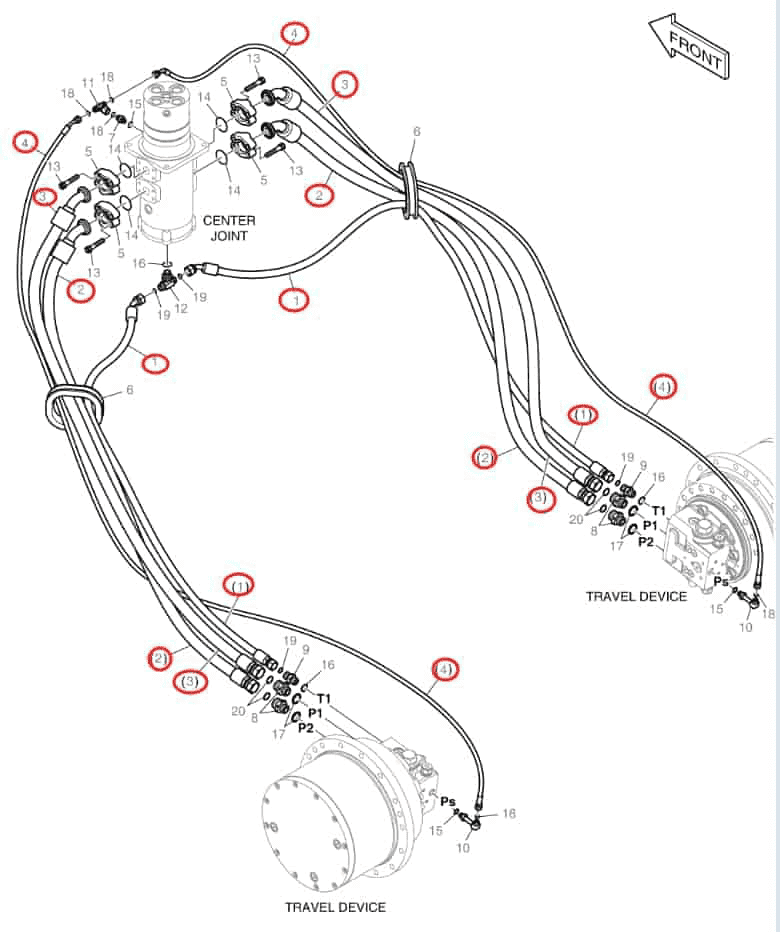

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number DS2120066 before removing the hose.

Part number: DS2120066
Diagram pipe number: 4
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,320 mm
Working pressure: 22.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 3

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 1,810 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型

Diagram Pipe No. 2

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 1,730 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型

Diagram Pipe No. 1

Installation route: Lower swivel joint → travel motorOriginal Chinese: 回转接头下~行走马达

Length: 1,710 mm
Specification: DN13;1SN-08;16MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封
