Individual hose record

DS2093101 Hose Repair Specifications

Excavator · Doosan · DX35Z · Control Lever

Finished length1,530 mm

Locate this hose

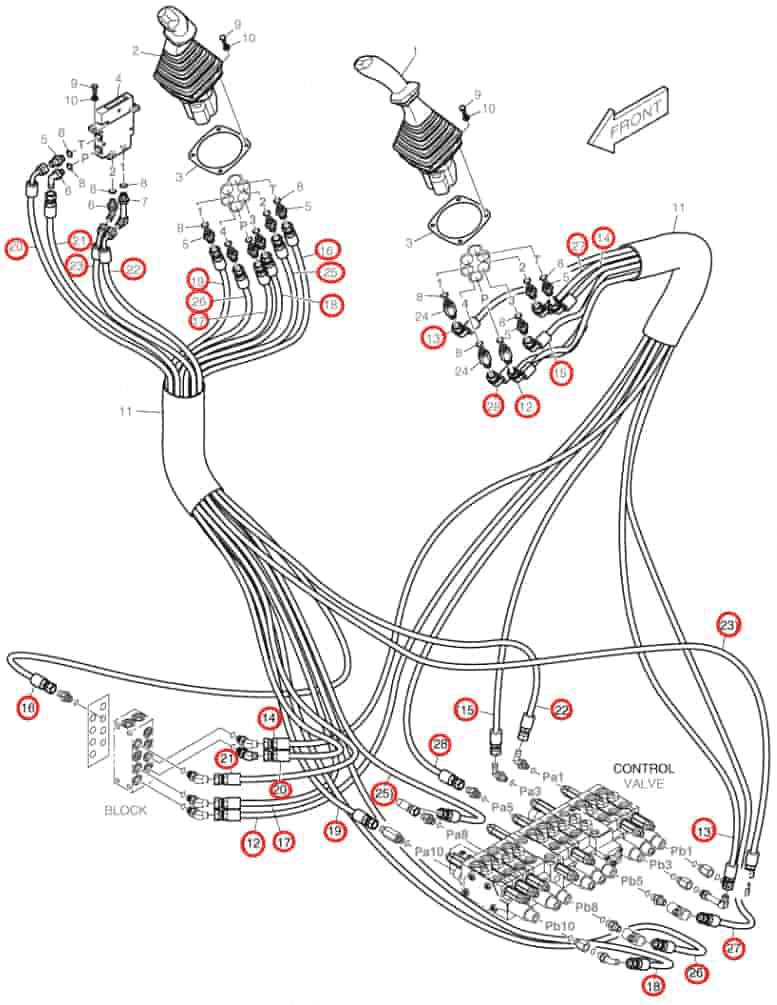

Installation diagram — Pipe No. 12

Locate Pipe No. 12 in the diagram, then confirm part number DS2093101 before removing the hose.

Doosan DX35Z installation diagram showing hydraulic hose DS2093101 at Pipe No. 12 — **Doosan DX35Z**Part DS2093101 · Pipe No. 12Open full-size diagram

Repair specifications

Part number: DS2093101
Diagram pipe number: 12
Installation route: 左手柄P口~进回油阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,530 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
