Individual hose record
4442331 Hose Repair Specifications
Excavator · Hitachi · ZX350F · Control Valve
Finished length500 mm
Locate this hose

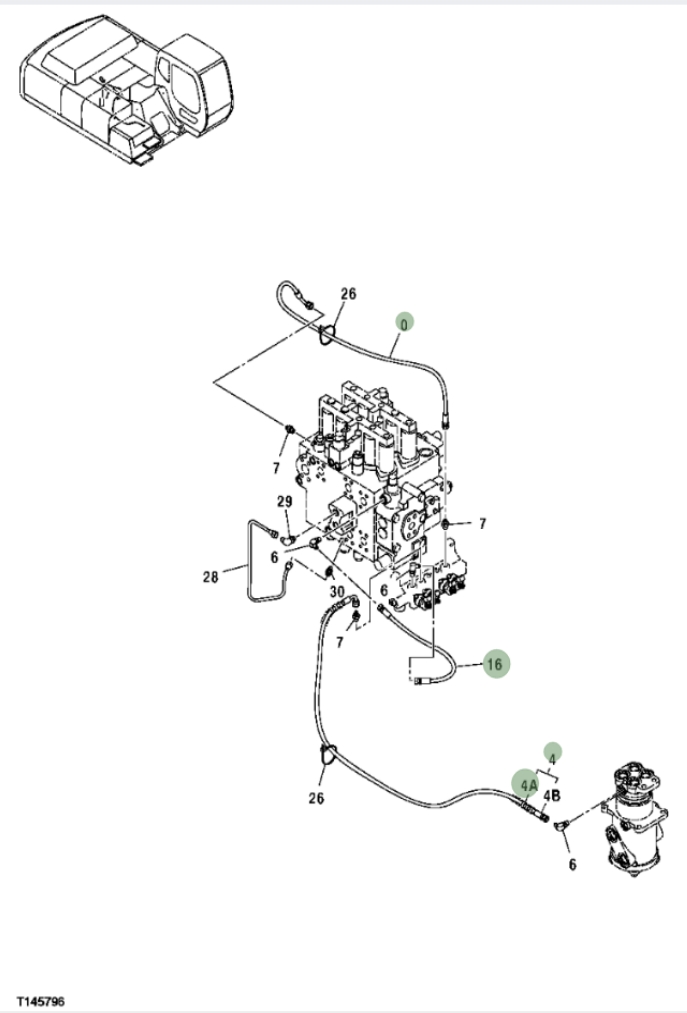

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 4442331 before removing the hose.
Repair specifications
- Part number
- 4442331
- Diagram pipe number
- 16
- Installation route
- 分配阀右~电磁阀
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 500 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
