Individual hose record
73050200C462 Hose Repair Specifications
Excavator · Sunward · SWE135E-3H · Control Valve
Finished length605 mm
Locate this hose

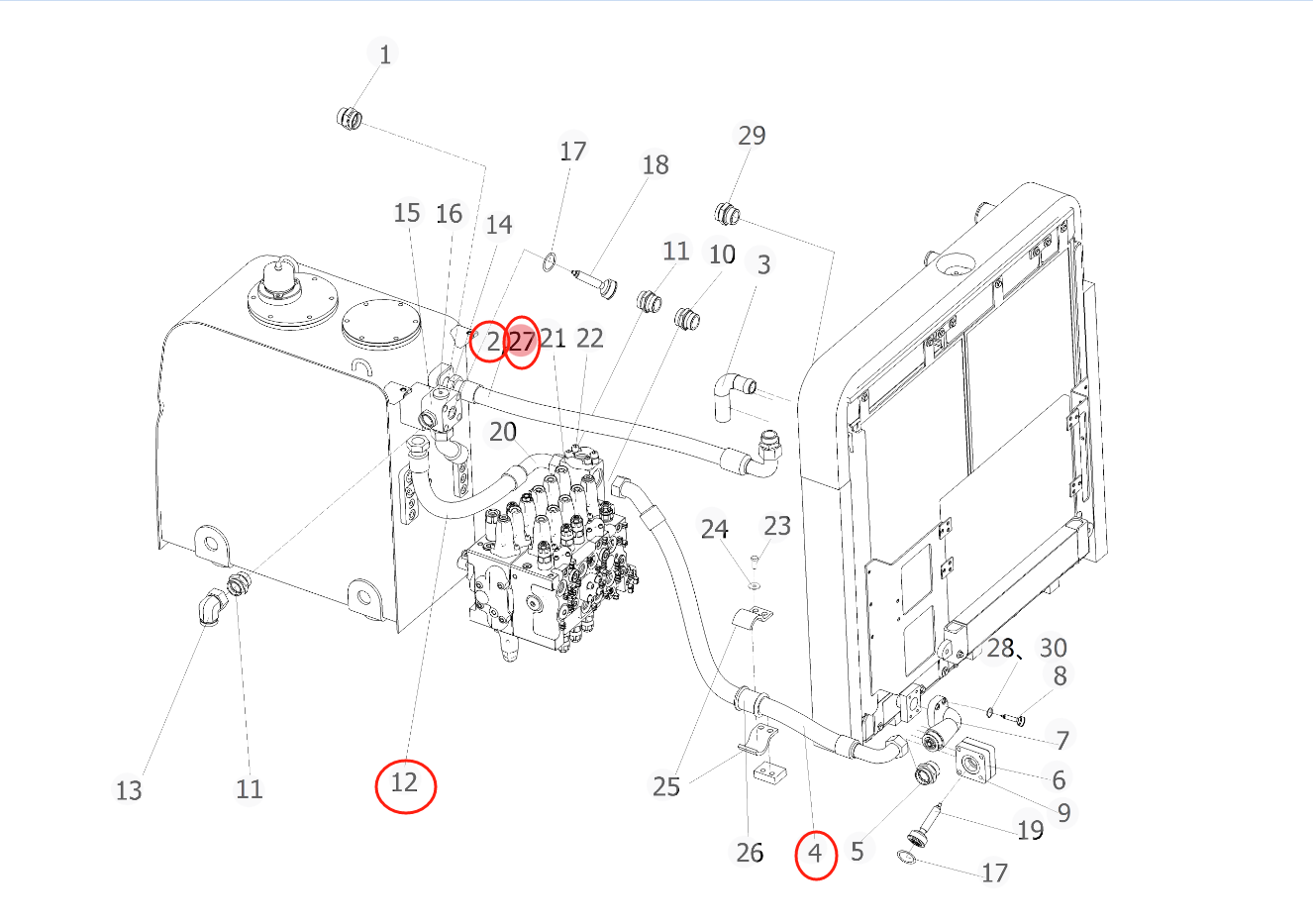

Installation diagram — Pipe No. 12
Locate Pipe No. 12 in the diagram, then confirm part number 73050200C462 before removing the hose.
Repair specifications
- Part number
- 73050200C462
- Diagram pipe number
- 12
- Installation route
- 分配阀~液压油箱
- Hose specification
- DN32;1SN-20;6.3MPa
- Finished length
- 605 mm
- Working pressure
- 6.3 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
