Individual hose record

730501001428 Hose Repair Specifications

Excavator · Sunward · SWE235E-3 · Swing Motor

Finished length1,850 mm

Locate this hose

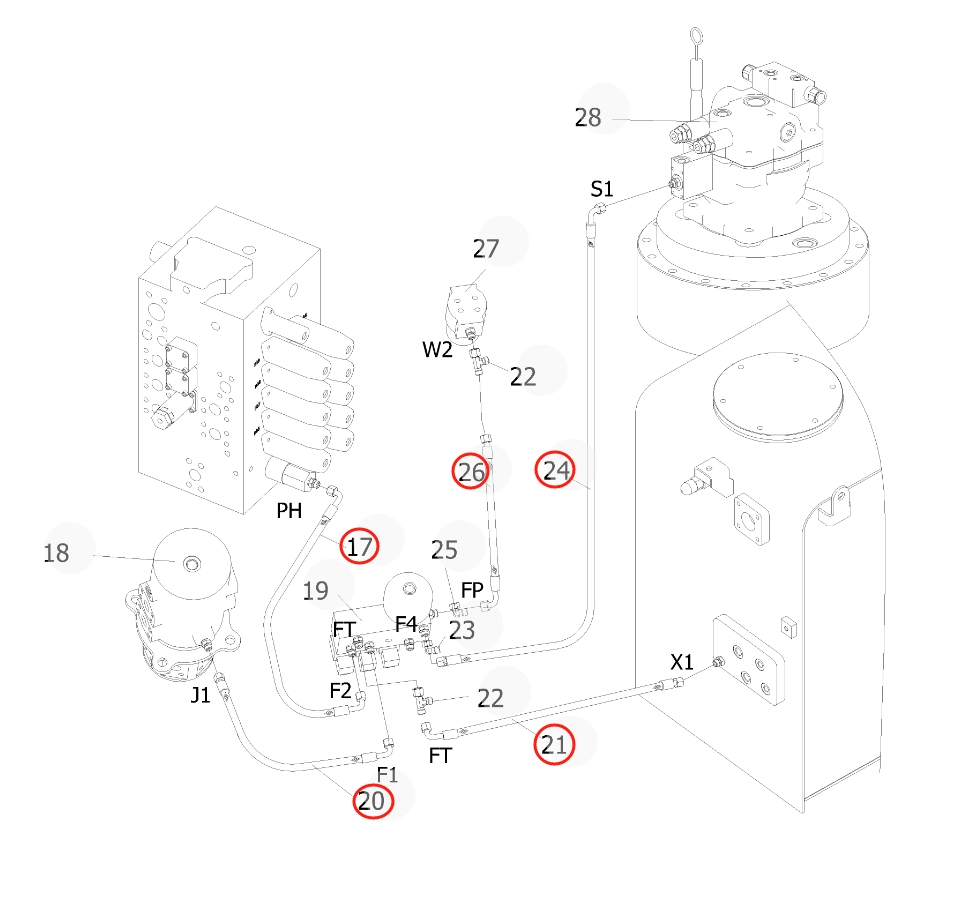

Installation diagram — Pipe No. 21

Locate Pipe No. 21 in the diagram, then confirm part number 730501001428 before removing the hose.

Sunward SWE235E-3 installation diagram showing hydraulic hose 730501001428 at Pipe No. 21 — Sunward SWE235E-3Part 730501001428 · Pipe No. 21Open full-size diagram

Repair specifications

Part number: 730501001428
Diagram pipe number: 21
Installation route: 回转马达S1~电磁阀(蓄能器)FP
Hose specification: DN10;1SN-06;20.7MPa
Finished length: 1,850 mm
Working pressure: 20.7 MPa
Left fitting: 公制内螺纹24°锥带O形圈-轻型
Right fitting: 公制内螺纹24°锥带O形圈-轻型
Quantity: 1
