Individual hose record
KNJ2338 Hose Repair Specifications
Excavator · Case · CX260C-8 LC · Swing Motor
Finished length700 mm
Locate this hose

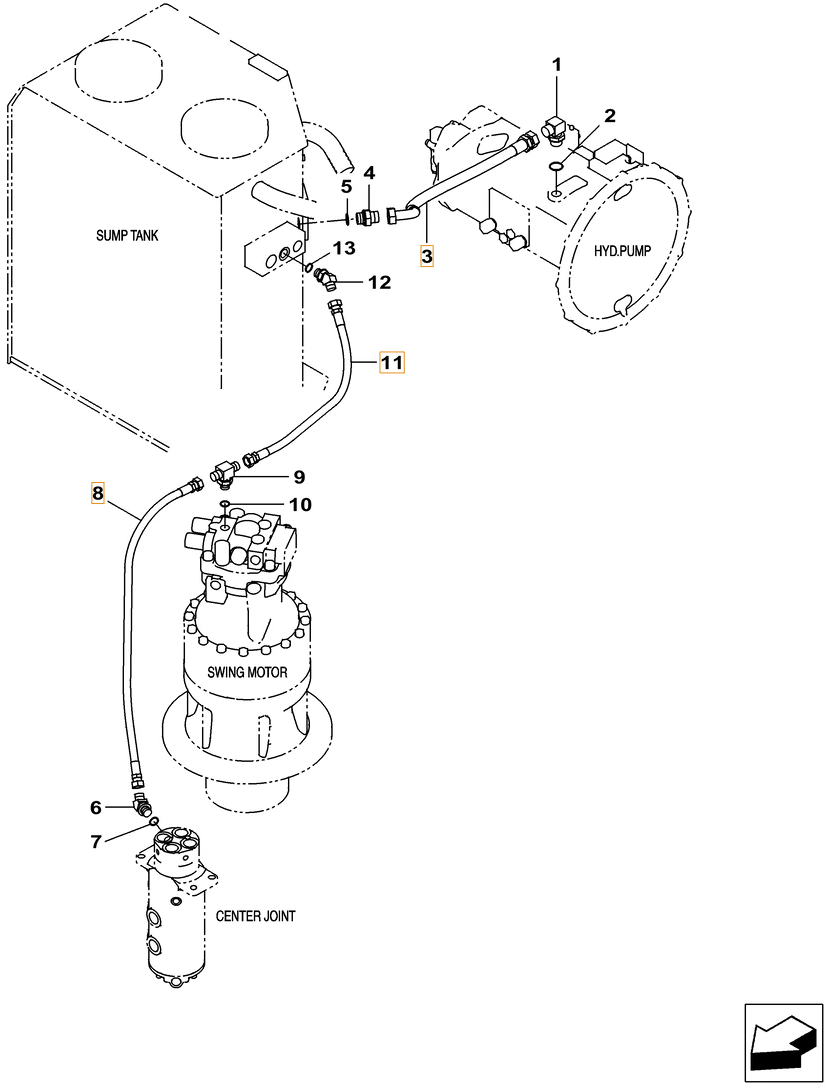

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number KNJ2338 before removing the hose.
Repair specifications
- Part number
- KNJ2338
- Diagram pipe number
- 11
- Installation route
- 回转马达~液压油箱过渡阀块
- Hose specification
- DN13;2SN-08;27.5MPa
- Finished length
- 700 mm
- Working pressure
- 27.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
