Individual hose record

DS2011962 Hose Repair Specifications

Excavator · Doosan · DX160W-3 · Attachments – Breaker

Finished length1,200 mm

Locate this hose

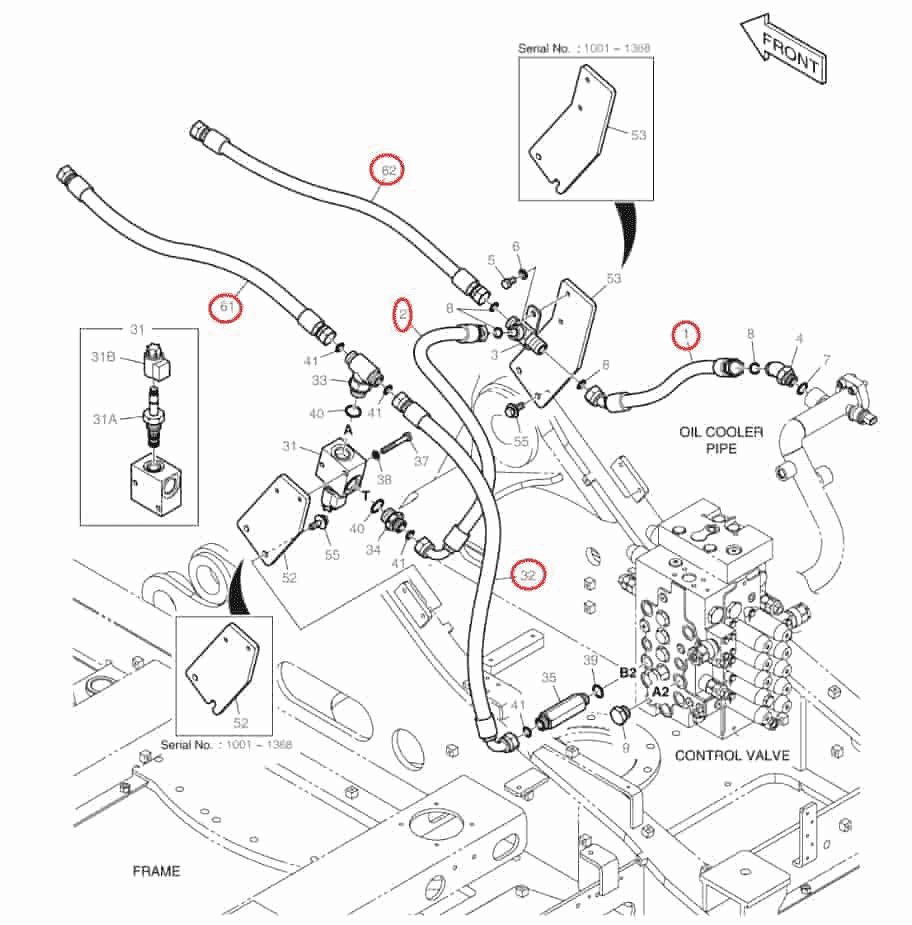

Installation diagram — Pipe No. 62

Locate Pipe No. 62 in the diagram, then confirm part number DS2011962 before removing the hose.

Part number: DS2011962
Diagram pipe number: 62
Installation route: 大臂(破碎器)~右过渡接头(破碎器)
Hose specification: DN19;1SN-12;10.5MPa
Finished length: 1,200 mm
Working pressure: 10.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 4

Installation route: EPPR阀A口~电磁阀T口

Length: 990 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 中转接头~电控液压动力转向阀A口

Length: 2,120 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 42

Installation route: 电控液压动力转向阀T口~进回油阀T口

Length: 300 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 左过渡阀块(破碎器)T口~右过渡接头(破碎器)

Length: 670 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 分配阀PS1口~EPPR阀A口

Length: 1,190 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 2

Installation route: 分配阀PA2口~液压油箱

Length: 1,070 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 5

Installation route: 液压油箱~EPPR阀T口

Length: 500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
