Individual hose record

KHJ1387 Hose Repair Specifications

Excavator · Case · CX230B · Control Valve

Finished length320 mm

Locate this hose

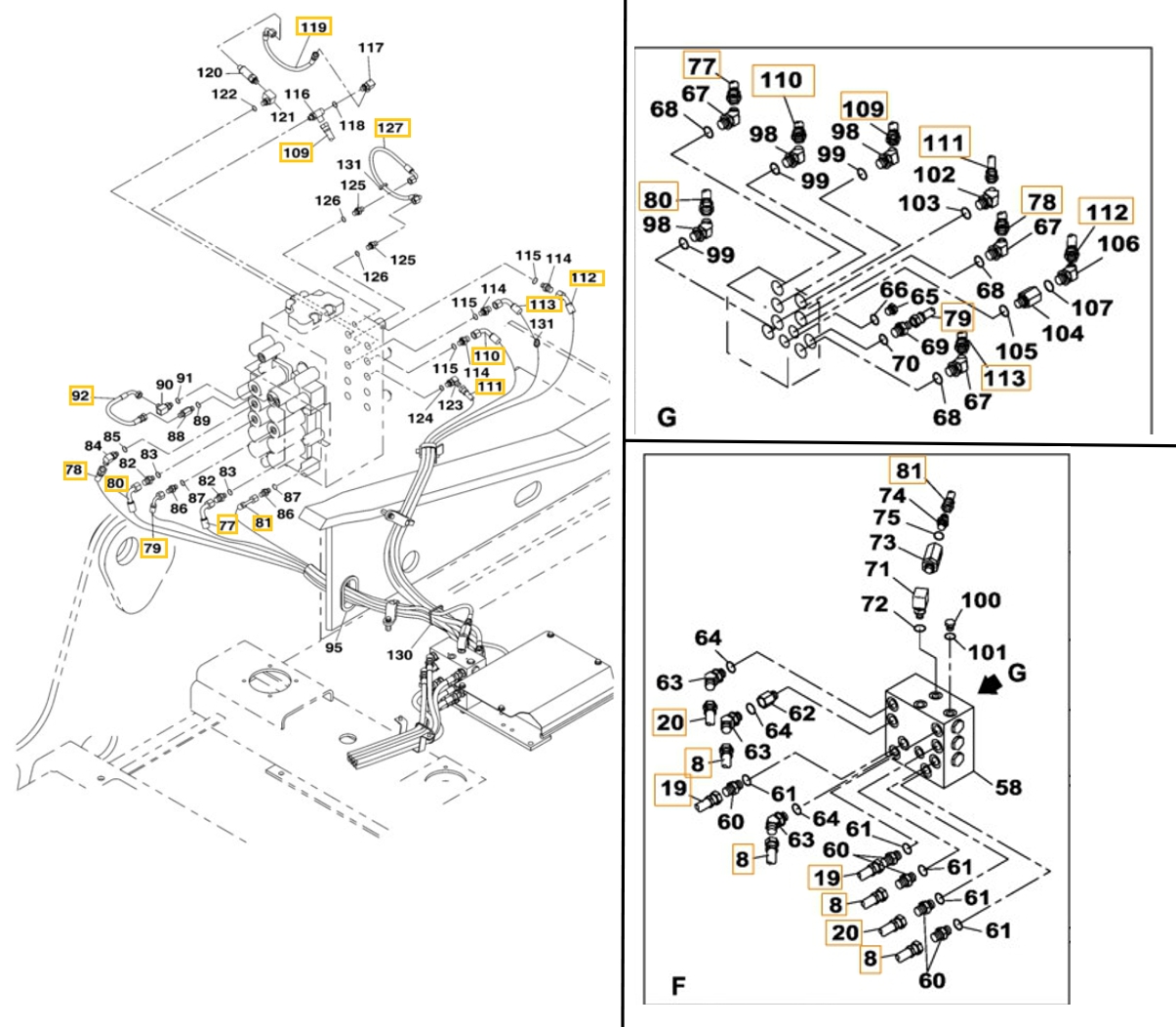

Installation diagram — Pipe No. 92

Locate Pipe No. 92 in the diagram, then confirm part number KHJ1387 before removing the hose.

Case CX230B installation diagram showing hydraulic hose KHJ1387 at Pipe No. 92 — **Case CX230B**Part KHJ1387 · Pipe No. 92Open full-size diagram

Repair specifications

Part number: KHJ1387
Diagram pipe number: 92
Installation route: 分配阀前~分配阀前
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 320 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1
