Individual hose record
4678900 Hose Repair Specifications
Excavator · Hitachi · ZX240LC-3 · Attachments – Breaker
Finished length380 mm
Locate this hose

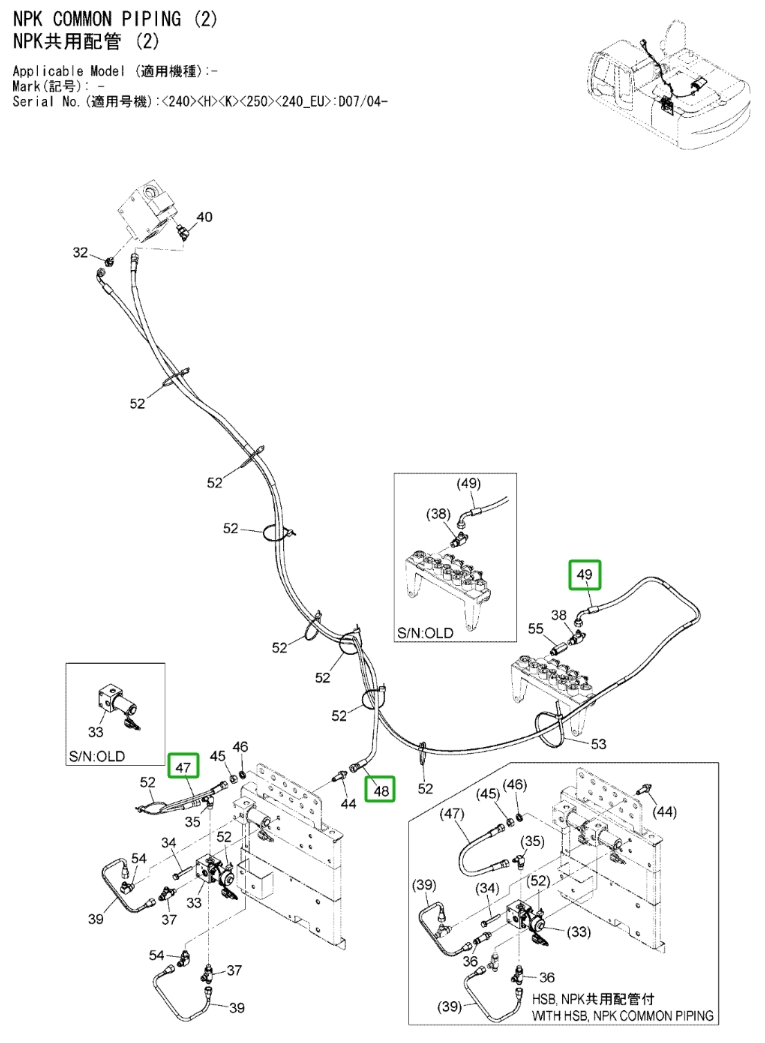

Installation diagram — Pipe No. 47
Locate Pipe No. 47 in the diagram, then confirm part number 4678900 before removing the hose.
Repair specifications
- Part number
- 4678900
- Diagram pipe number
- 47
- Installation route
- 电磁阀(破碎器)~接线板(隔板)
- Hose specification
- DN6;1SN-4;7Mpa
- Finished length
- 380 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
