Individual hose record
4435692 Hose Repair Specifications
Excavator · Hitachi · ZX240 · Engine Oil Lines
Finished length1,350 mm
Locate this hose

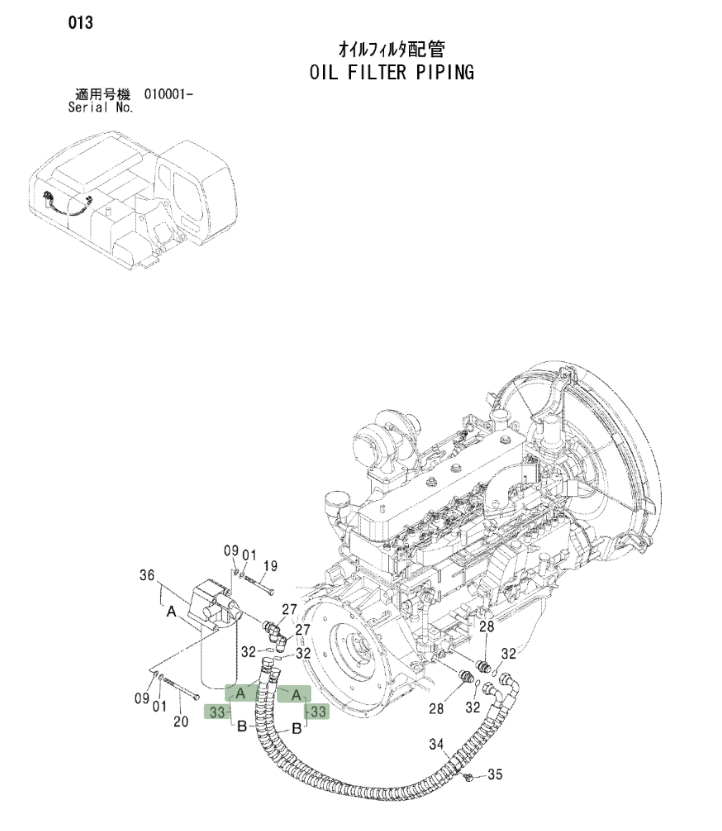

Installation diagram — Pipe No. 33A
Locate Pipe No. 33A in the diagram, then confirm part number 4435692 before removing the hose.
Repair specifications
- Part number
- 4435692
- Diagram pipe number
- 33A
- Installation route
- 机油管
- Hose specification
- DN16;1SN-10;13Mpa
- Finished length
- 1,350 mm
- Working pressure
- 13 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
