Individual hose record
9290833 Hose Repair Specifications
Excavator · Hitachi · ZX260FLC-FE-6N · Solenoid Valve
Finished length1,000 mm
Locate this hose

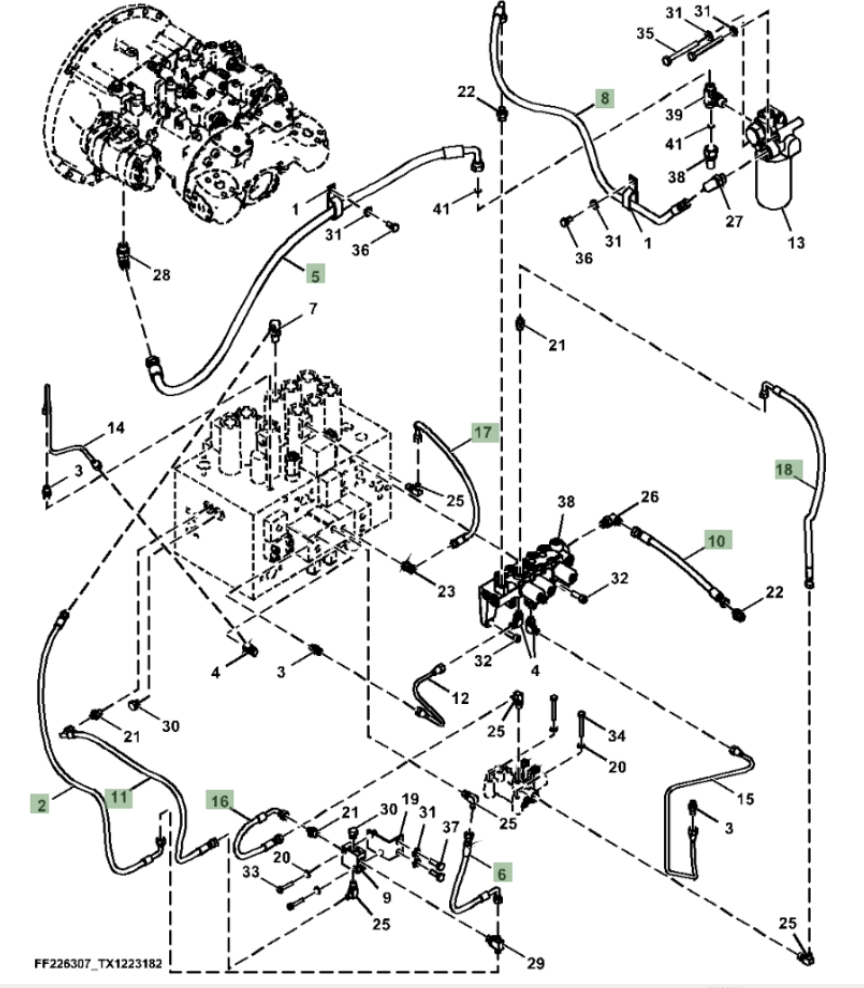

Installation diagram — Pipe No. 18
Locate Pipe No. 18 in the diagram, then confirm part number 9290833 before removing the hose.
Repair specifications
- Part number
- 9290833
- Diagram pipe number
- 18
- Installation route
- 电磁阀~电磁阀(液压泵)
- Hose specification
- DN6;1SN-04;7Mpa
- Finished length
- 1,000 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
