Individual hose record
4715840 Hose Repair Specifications
Excavator · Hitachi · ZX260F-FE-6N · Hydraulic Pump
Finished length1,900 mm
Locate this hose

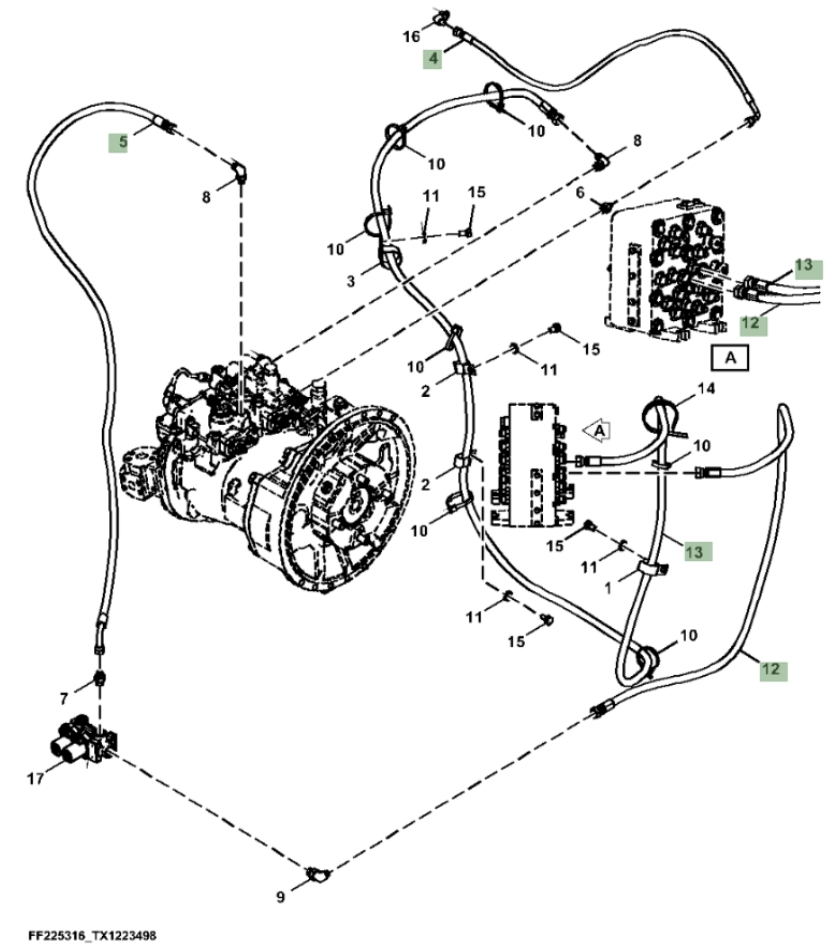

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4715840 before removing the hose.
Repair specifications
- Part number
- 4715840
- Diagram pipe number
- 5
- Installation route
- 液压泵~电磁阀(液压泵)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,900 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
