Individual hose record
4351173 Hose Repair Specifications
Excavator · Hitachi · EX120-5 · Swing Motor
Finished length850 mm
Locate this hose

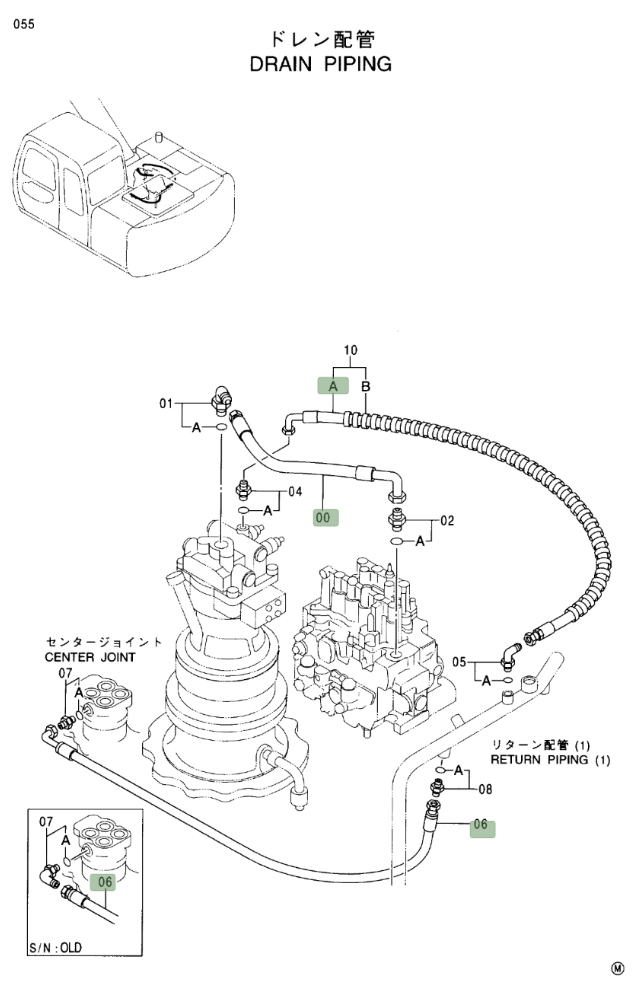

Installation diagram — Pipe No. 10A
Locate Pipe No. 10A in the diagram, then confirm part number 4351173 before removing the hose.
Repair specifications
- Part number
- 4351173
- Diagram pipe number
- 10A
- Installation route
- Swing motor → return steel line (hydraulic tank)Original Chinese: 回转马达~回油铁管(液压油箱)
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 850 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Quantity
- 1
