Diagram Pipe No. 14
4286515
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 2,300 mm
- Specification
- DN13;2SN-08;27.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
Individual hose record
4239715 Hose Repair Specifications
Excavator · Hitachi · EX200LC-2 · Swivel Joint
Finished length2,400 mm
Locate this hose

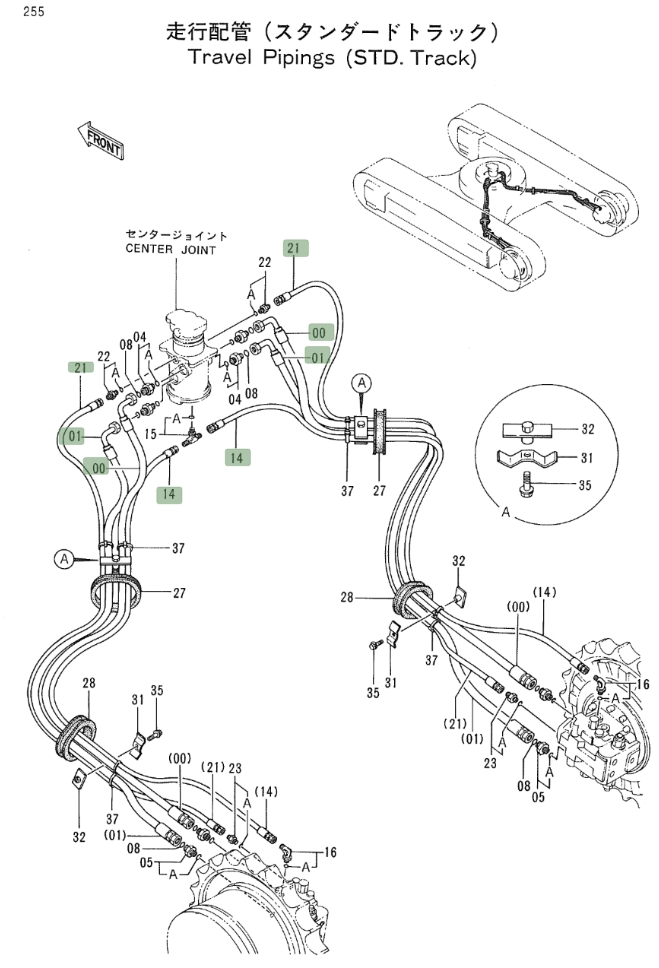

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 4239715 before removing the hose.
Repair specifications
- Part number
- 4239715
- Diagram pipe number
- 21
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 2,400 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 2
Same system
Related Hoses
Diagram Pipe No. 14
4262931
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 2,100 mm
- Specification
- DN13;2SN-08;27.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Length
- 1,200 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
Diagram Pipe No. 21
4262276
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Length
- 2,200 mm
- Specification
- DN6;1SN-4;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
