4463469 Hose Repair Specifications
Excavator · Hitachi · ZX75US · Swivel Joint
Finished length1,380 mm
Locate this hose

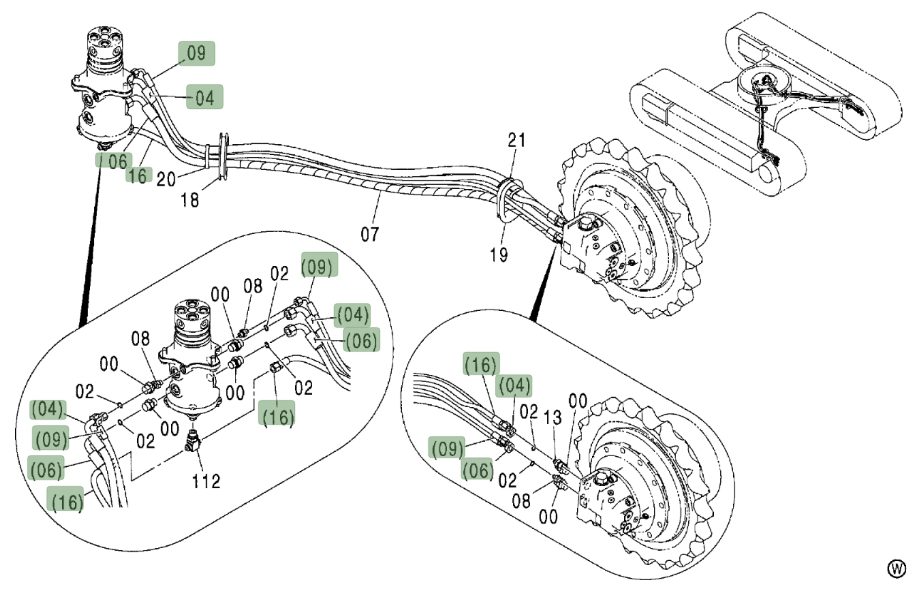

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4463469 before removing the hose.
Repair specifications
- Part number
- 4463469
- Diagram pipe number
- 6
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN13;4SP-08;41.5MPa
- Finished length
- 1,380 mm
- Working pressure
- 41.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
