Individual hose record
DS2121029 Hose Repair Specifications
Excavator · Doosan · DX140LCR-3 · Hydraulic Tank
Finished length1,030 mm
Locate this hose

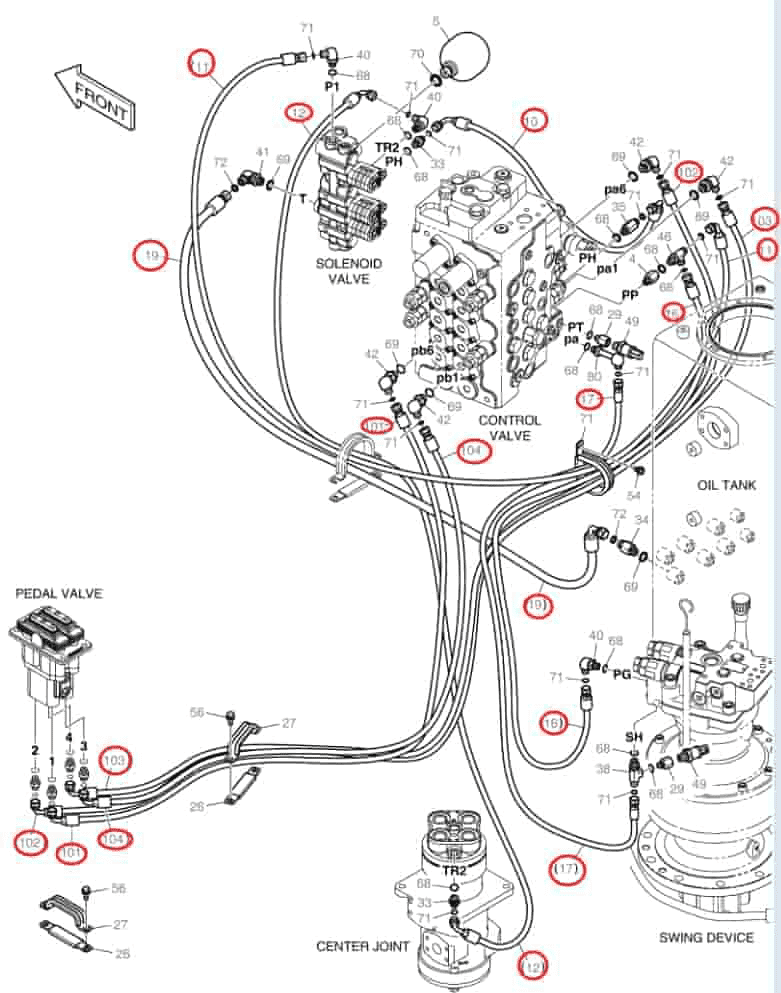

Installation diagram — Pipe No. 19
Locate Pipe No. 19 in the diagram, then confirm part number DS2121029 before removing the hose.
Repair specifications
- Part number
- DS2121029
- Diagram pipe number
- 19
- Installation route
- 液压油箱~电磁阀T口
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,030 mm
- Working pressure
- 18 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
