Individual hose record

152604A1 Hose Repair Specifications

Excavator · Case · CX330 · Control Valve

Finished length1,600 mm

Locate this hose

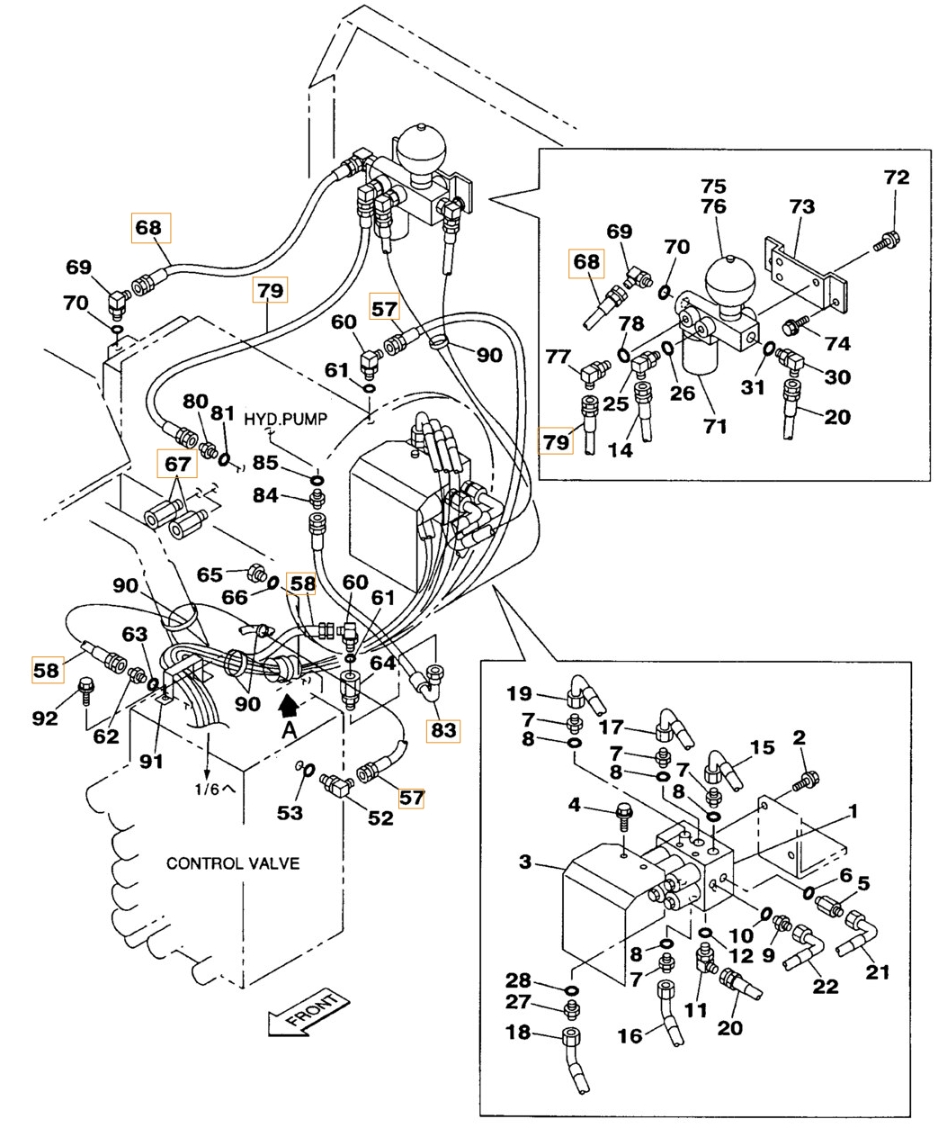

Installation diagram — Pipe No. 58

Locate Pipe No. 58 in the diagram, then confirm part number 152604A1 before removing the hose.

Part number: 152604A1
Diagram pipe number: 58
Installation route: 分配阀右~接头(液压泵)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,600 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 143

Installation route: 分配阀前左~分配阀前右

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 17

Installation route: 分配阀前右~电磁阀

Length: 3,150 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 22

Installation route: 分配阀顶右~旁通过滤器

Length: 2,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 15

Installation route: 分配阀后右~旁通过滤器

Length: 2,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
